Ignition Coil: Service and Repair

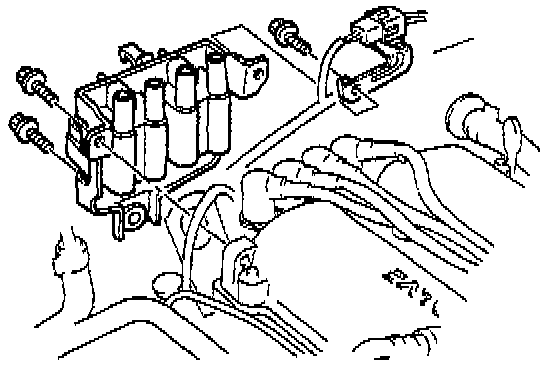

REPLACEMENT
1. Disconnect the high-tension leads and ignition coil connector.




2. Remove the installation bolts and the ignition coil.
3. Install in the reverse order of removal.

Tightening torque: 19-25 N m (14-18 ft.lb)
