Home >> Mazda >> 1995 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> Control Module, A/T

Control Module, A/T

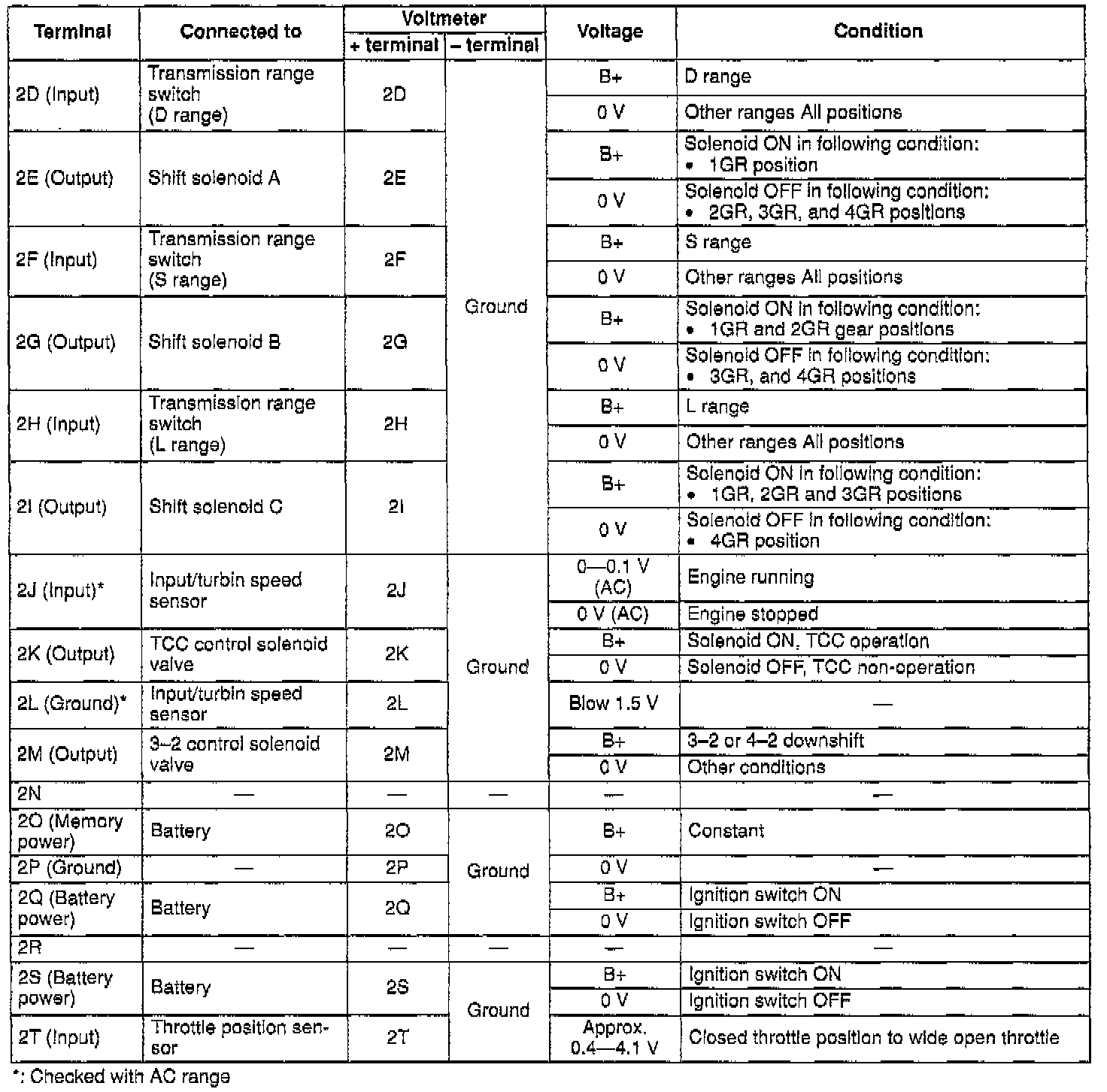

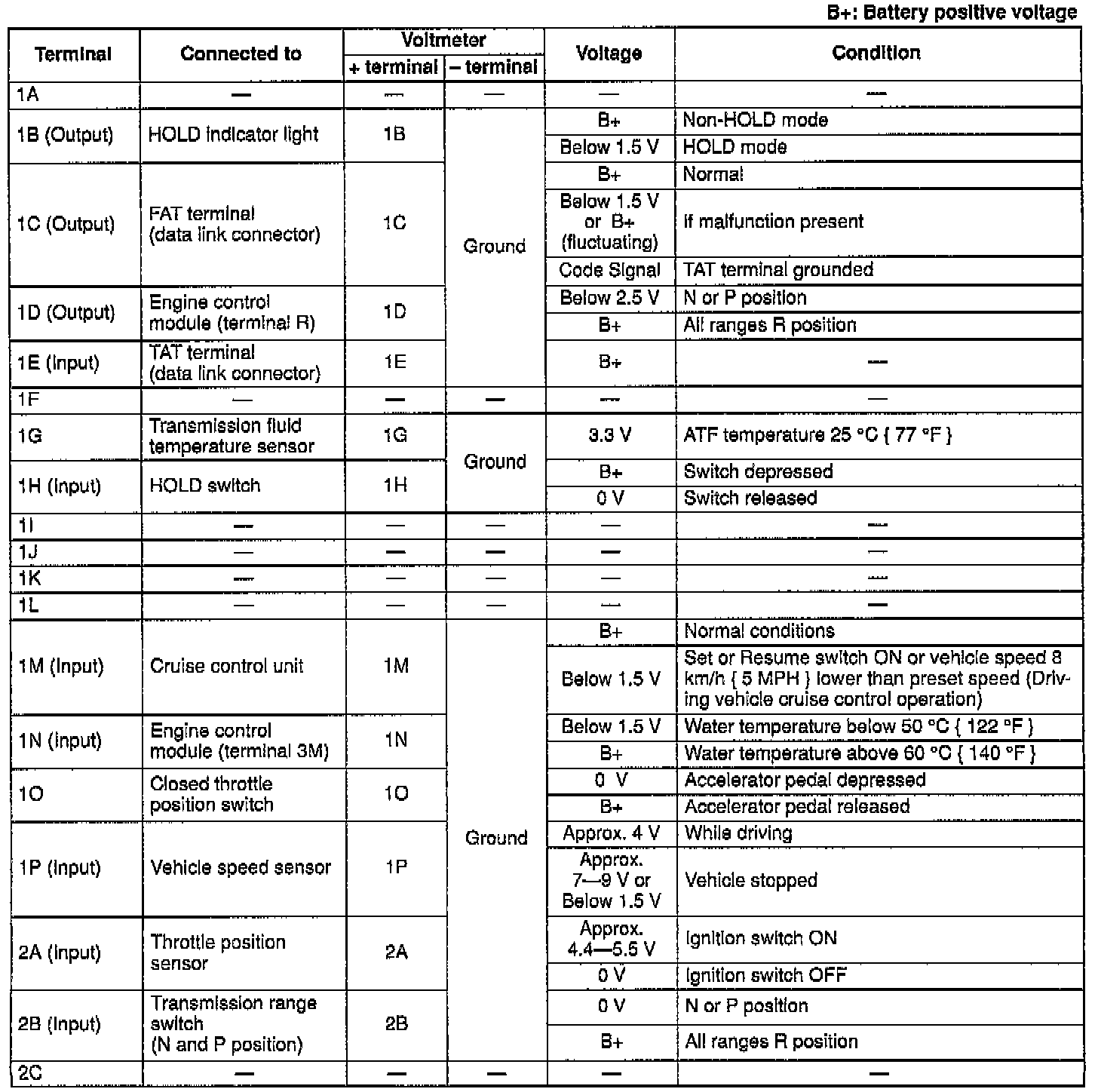

TERMINAL VOLTAGE CHARTS (Reference Data)
