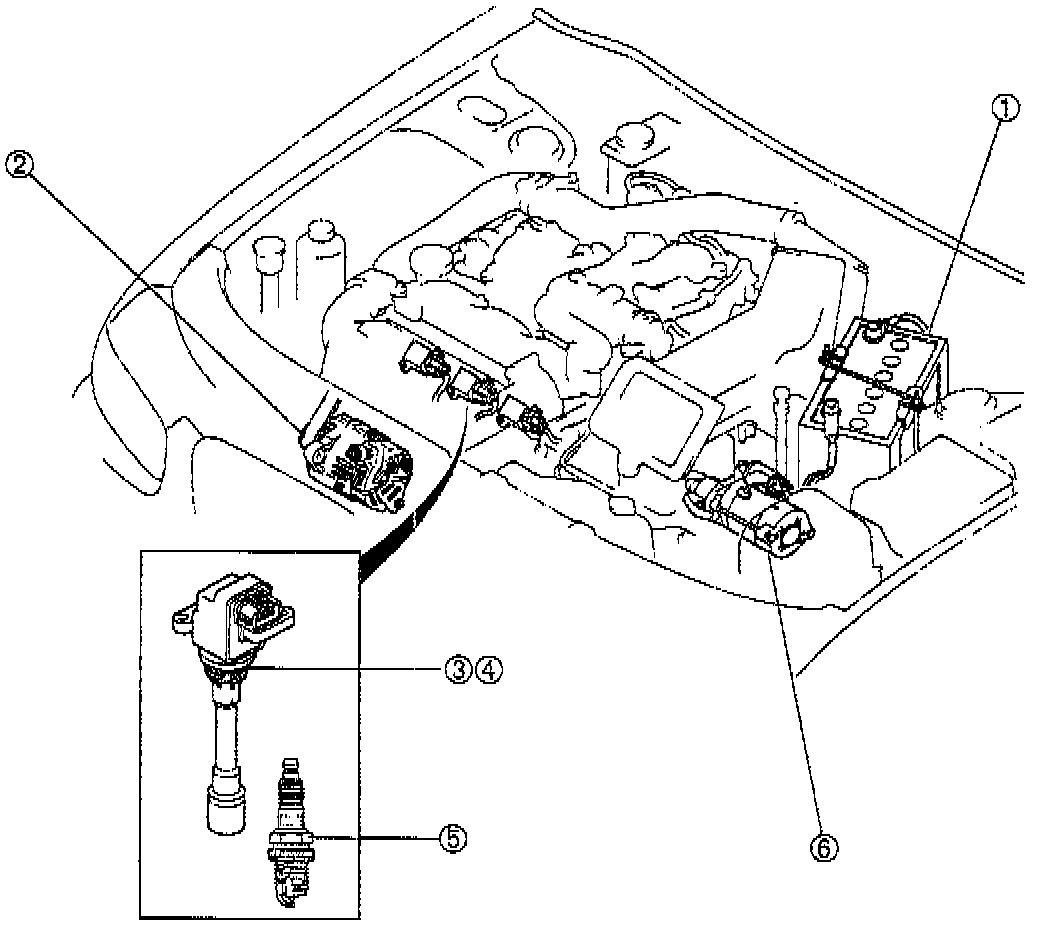

Ignition System: Locations

1. Battery
2. Generator
3. Ignition control module (In ignition coil)
4. Ignition coil
5. Spark plug
6. Starter
