Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 1995 >> Millenia V6-2255cc 2.3L DOHC >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations >> B-2B

B-2B

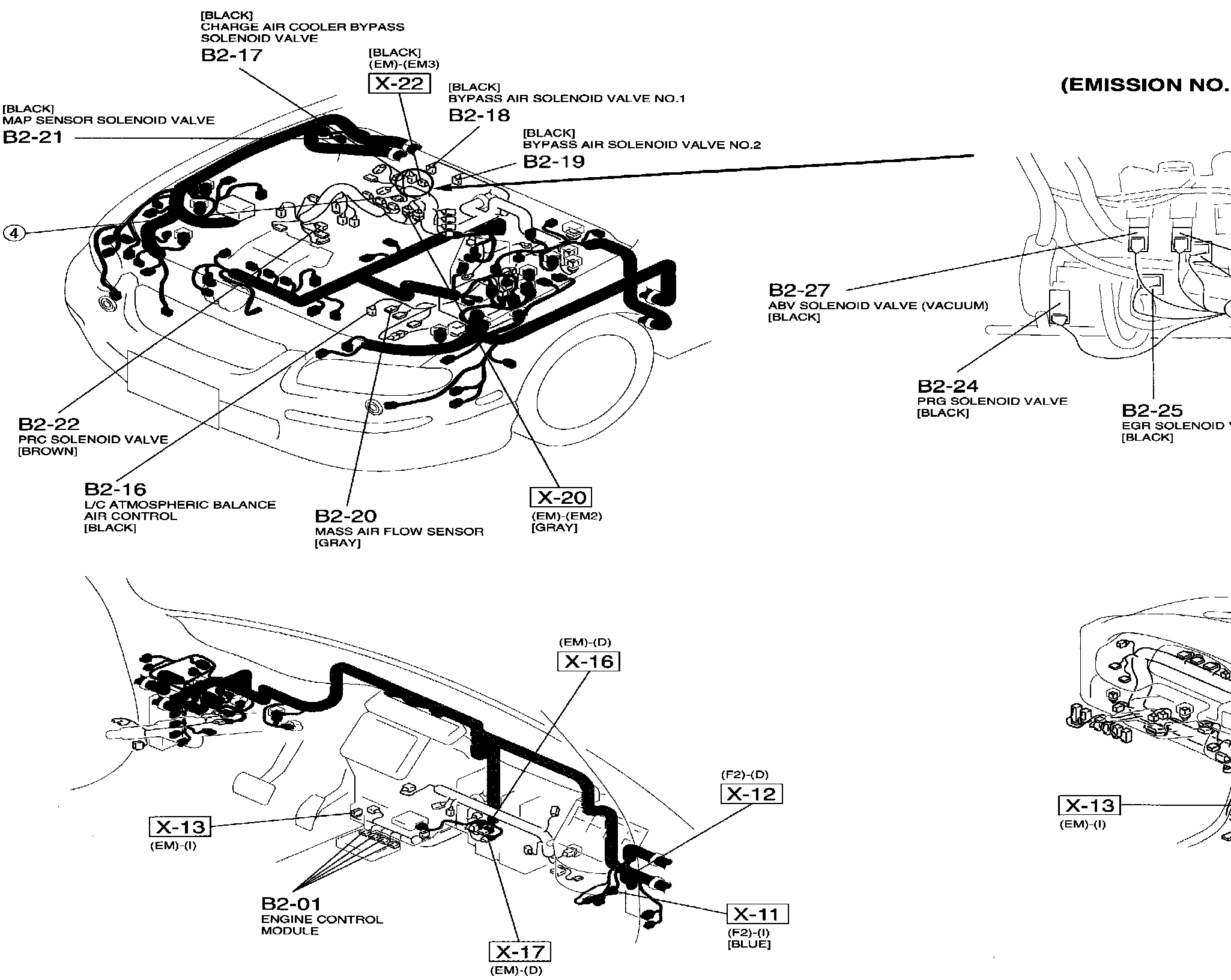

{�4Connector Locations:
