Traction Control Module: Testing and Inspection
InspectionTerminal voltage chart (reference value)
(Ignition switch is ON, and connector is connected unless indicated otherwise)
Terminal Layout:

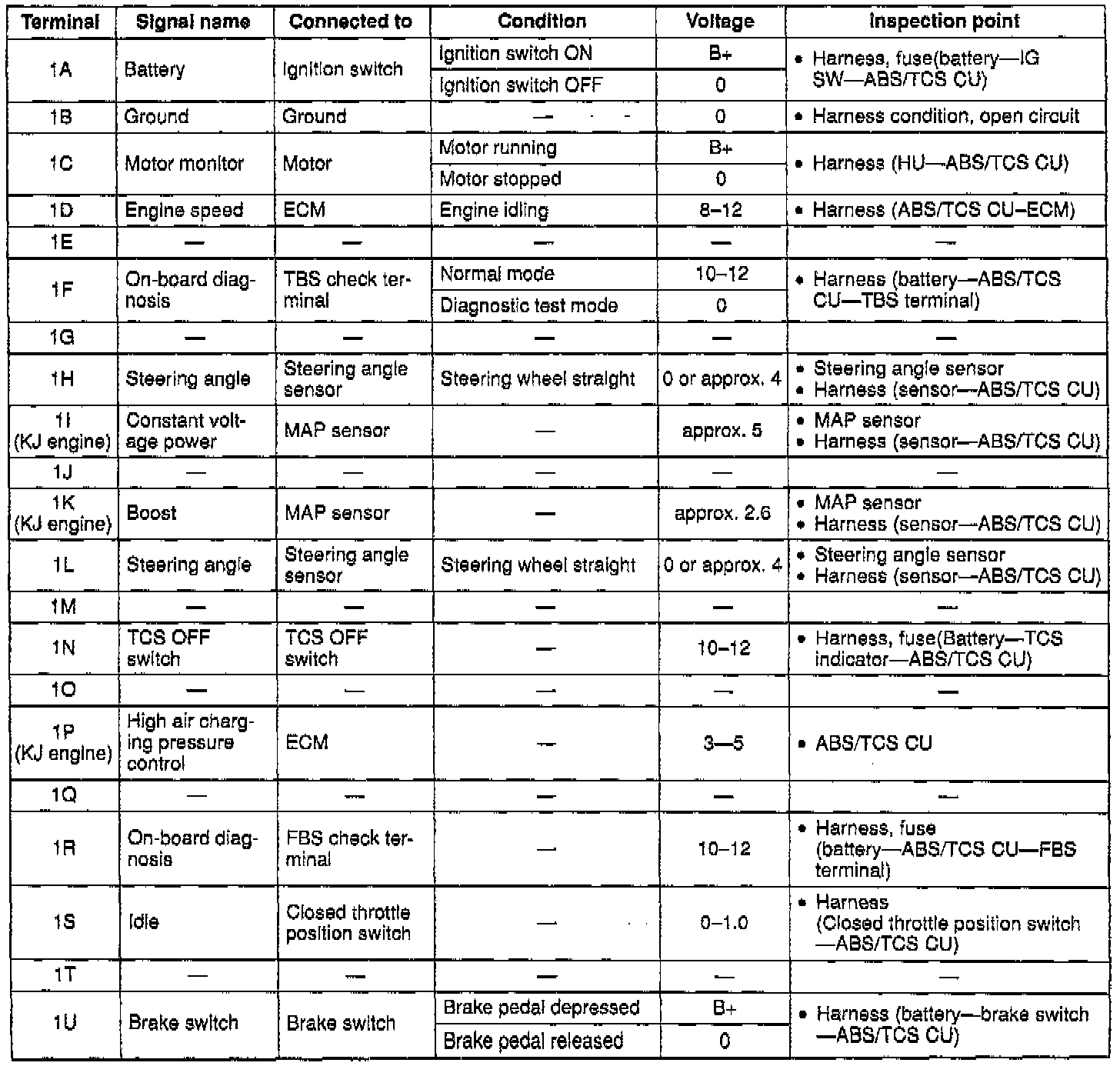

Terminals 1A Through 1U:

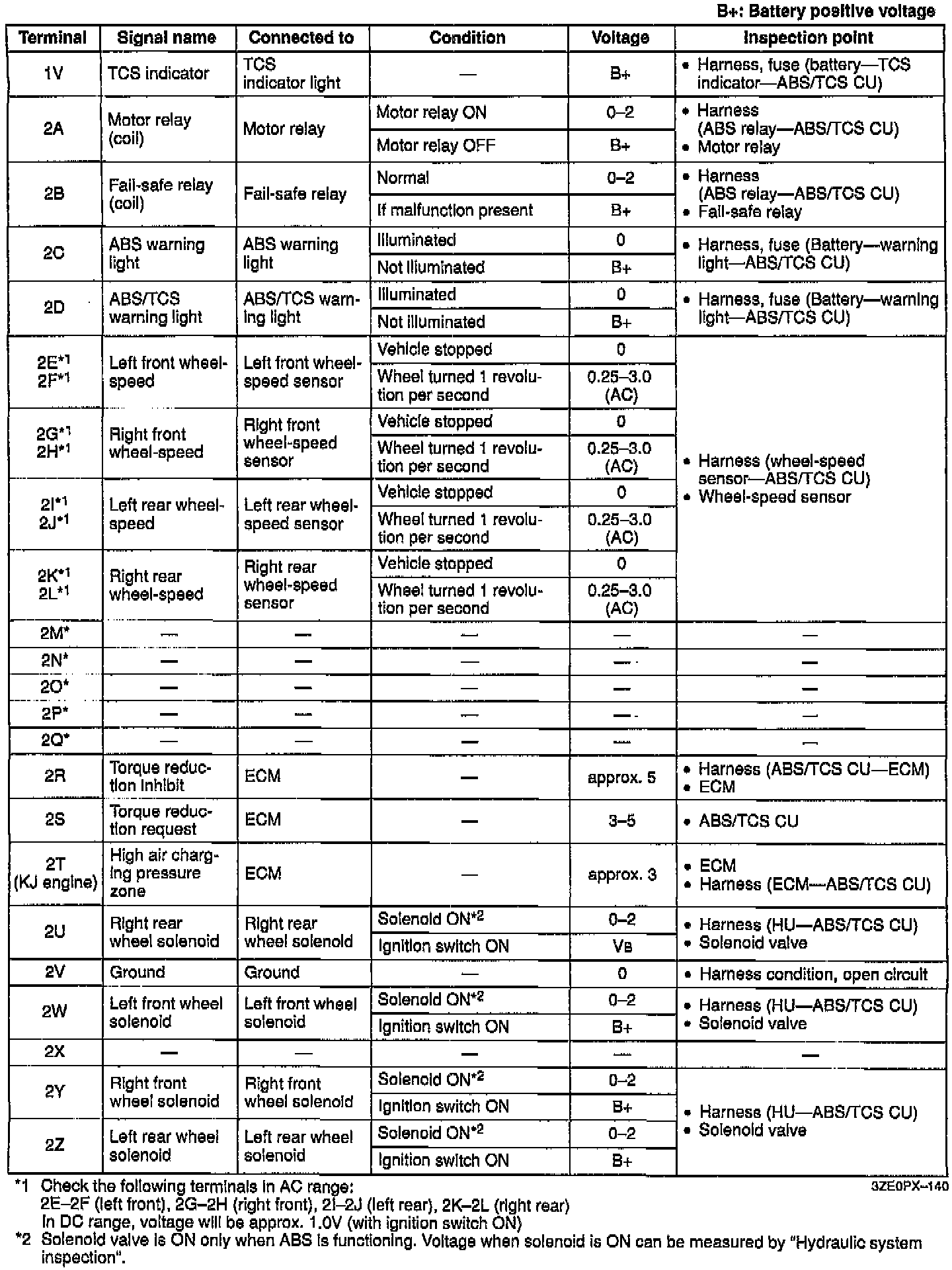

Terminals 1V Through 2Z:
Terminal voltage chart (reference value)
(Ignition switch is ON, and connector is connected unless indicated otherwise)
