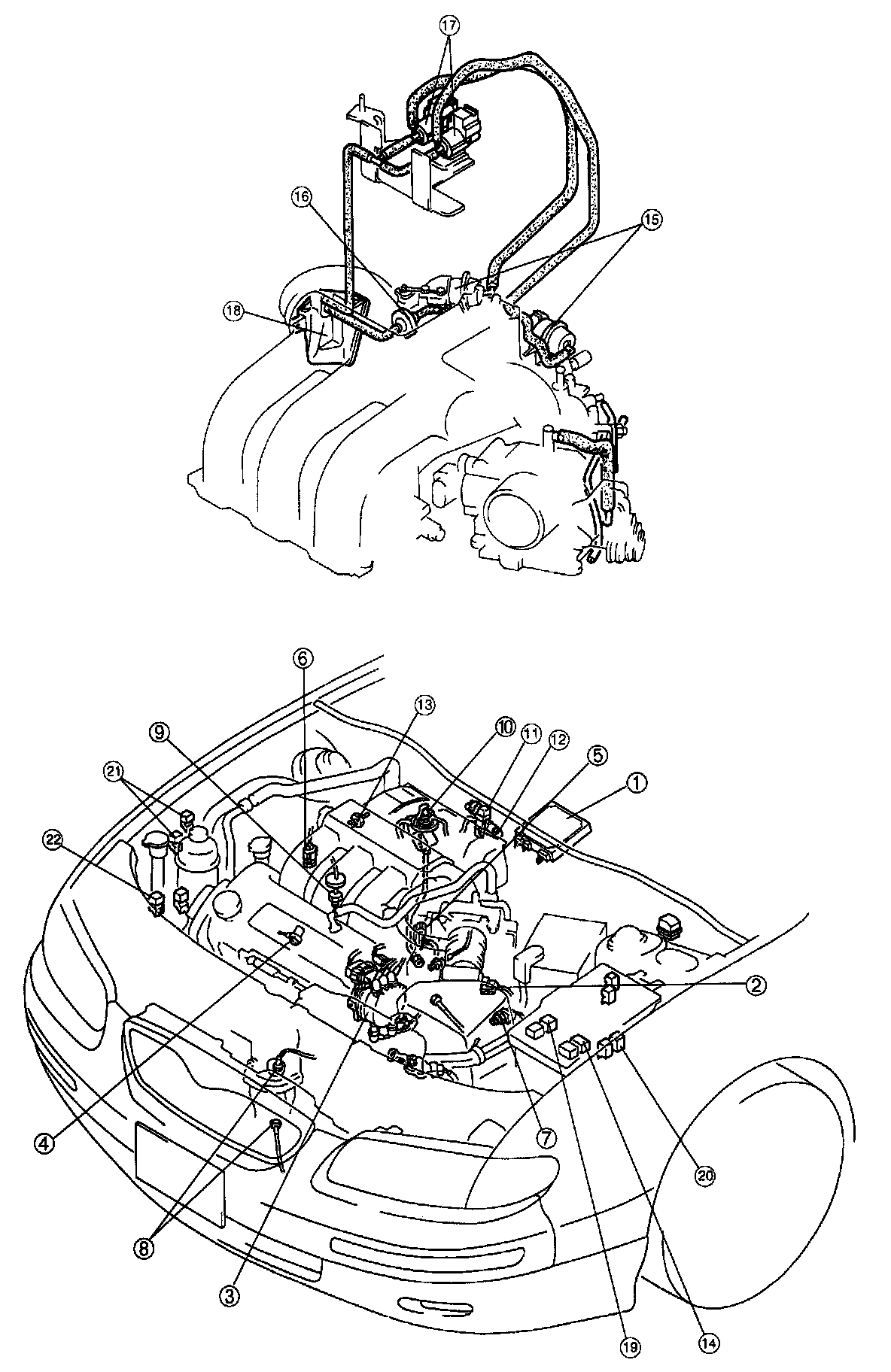

Component Locations

1. Engine control module (ECM)
2. Mass air flow sensor
3. Camshaft position sensor
4. Crankshaft position sensor
5. Throttle position sensor
6. Engine coolant temperature sensor
7. Intake air temperature sensor
8. Heated oxygen sensor (front, similar rear)
9. Knock sensor
10. EGR valve position sensor
11. EGR boost sensor
12. EGR boost sensor solenoid valve
13. P/S pressure switch
14. Main relay
15. VRIS shutter valve actuator
16. Check valve
17. VRIS solenoid valve
18. Vacuum chamber
19. Fuel pump relay
20. Coolant fan relay
21. Condenser fan relay
