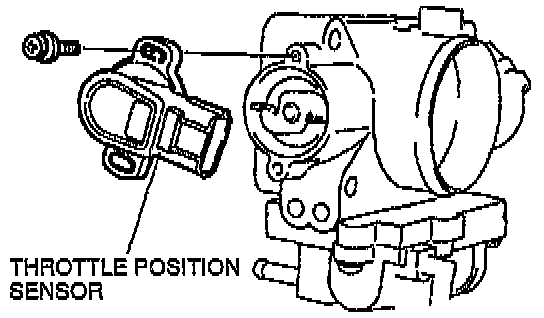

Throttle Position Sensor: Service and Repair

Replacement
1. Disconnect the throttle position sensor connector.
2. Remove the attaching screws.
3. Replace the throttle position sensor.
4. Tighten the attaching screws.

Tightening torque:
1.6-2.3 Nm (14-20 in.lb.)

5. Adjust the throttle position sensor.
