Transmission Position Sensor/Switch: Adjustments

Adjustment
1. Disconnect the negative battery cable.
2. Remove the air cleaner assembly.

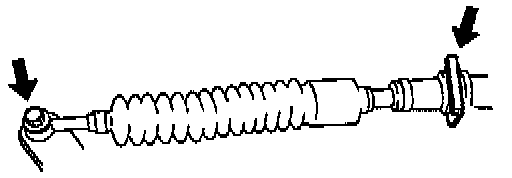

3. Remove the nut and clip; and disconnect the selector cable.
4. Rotate the manual shaft to the neutral position.
5. Disconnect the transmission range sensor connector.

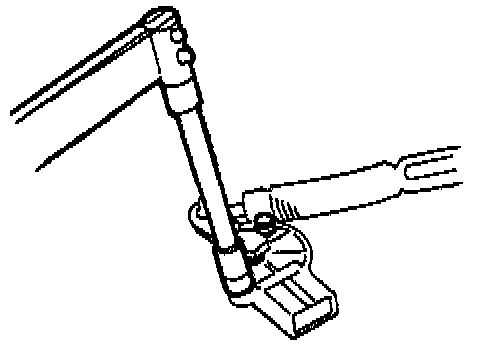

6. Loosen the transmission range sensor mounting bolts.

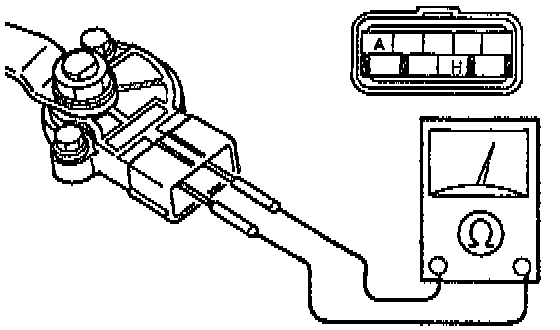

7. Connect an ohmmeter between terminals A and H.




8. Adjust the switch to the point where there is continuity between the terminals.




9. Tighten the transmission range sensor mounting bolts.

Tightening Torque: 7.9-10.7 Nm (69.5-95.4 in.lb.)

10. Verify that the selector lever range position and transmission range sensor are aligned.
11. Connect the transmission range sensor connector.
12. Connect the selector cable and install nut and clip.
13. Install the air cleaner assembly.
