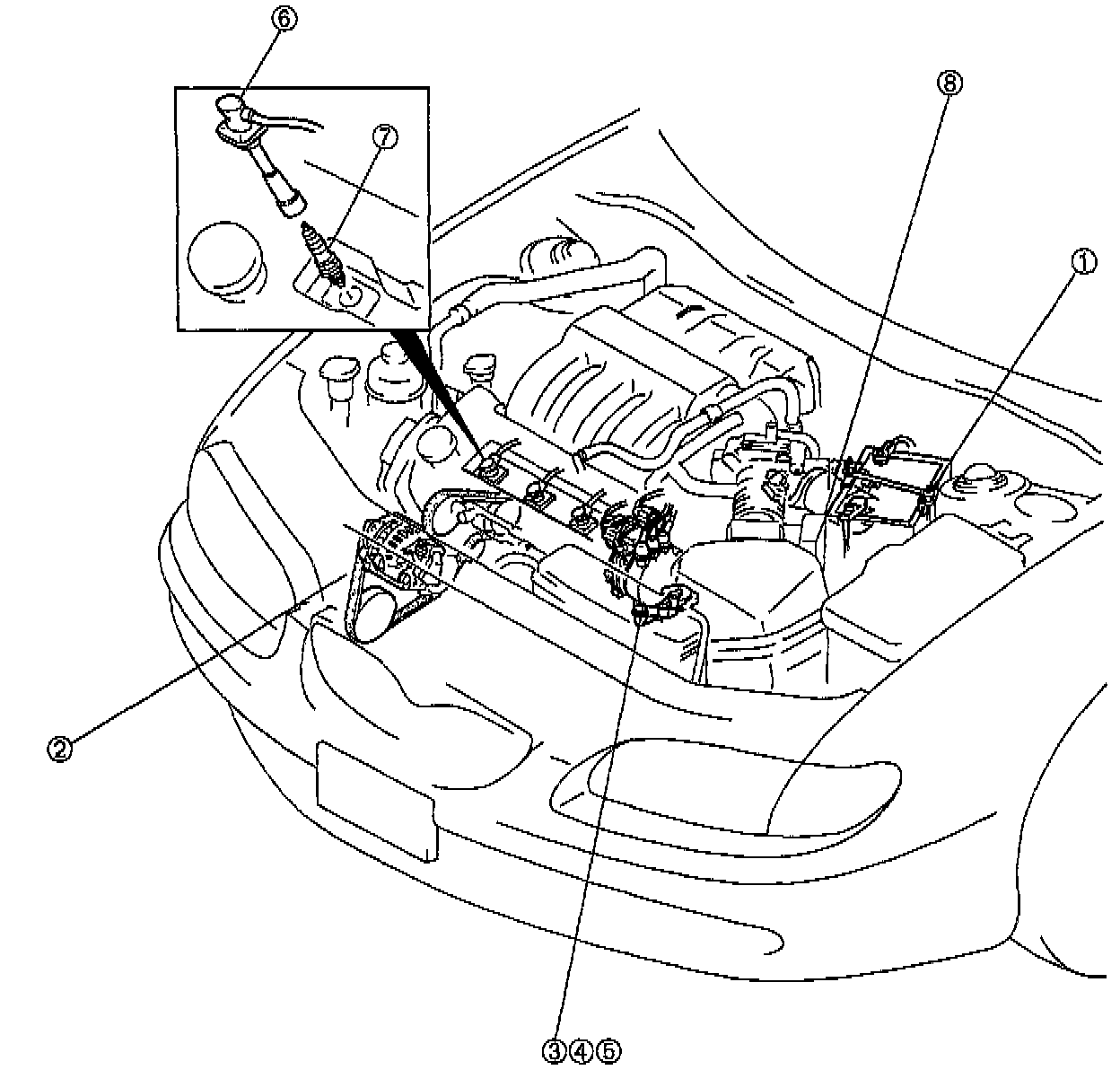

Ignition System: Locations

1. Battery
2. Generator
3. Ignition control module (In distributor)
4. Ignition coil (In distributor)
5. Distributor
6. High-tension lead
7. Sparkplug
8. Starter
