Electronic Brake Control Module: Testing and Inspection

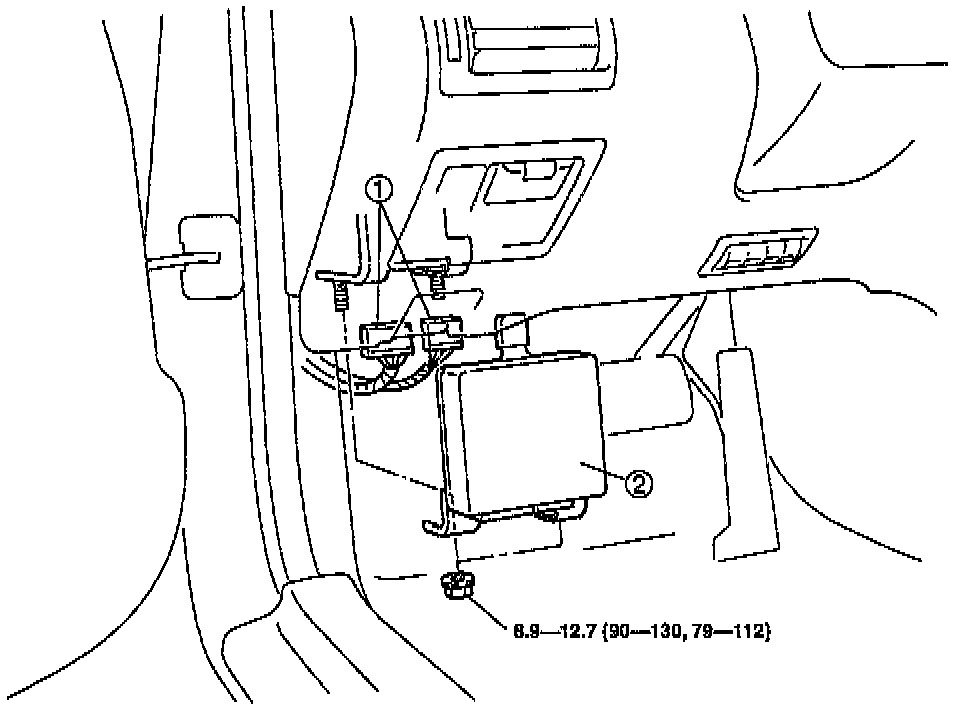

Removal/Installation




1. Connector
2. ABS control unit

Inspection
Terminal voltage chart (reference value)
(Ignition switch is ON, and connector is connected unless indicated otherwise)

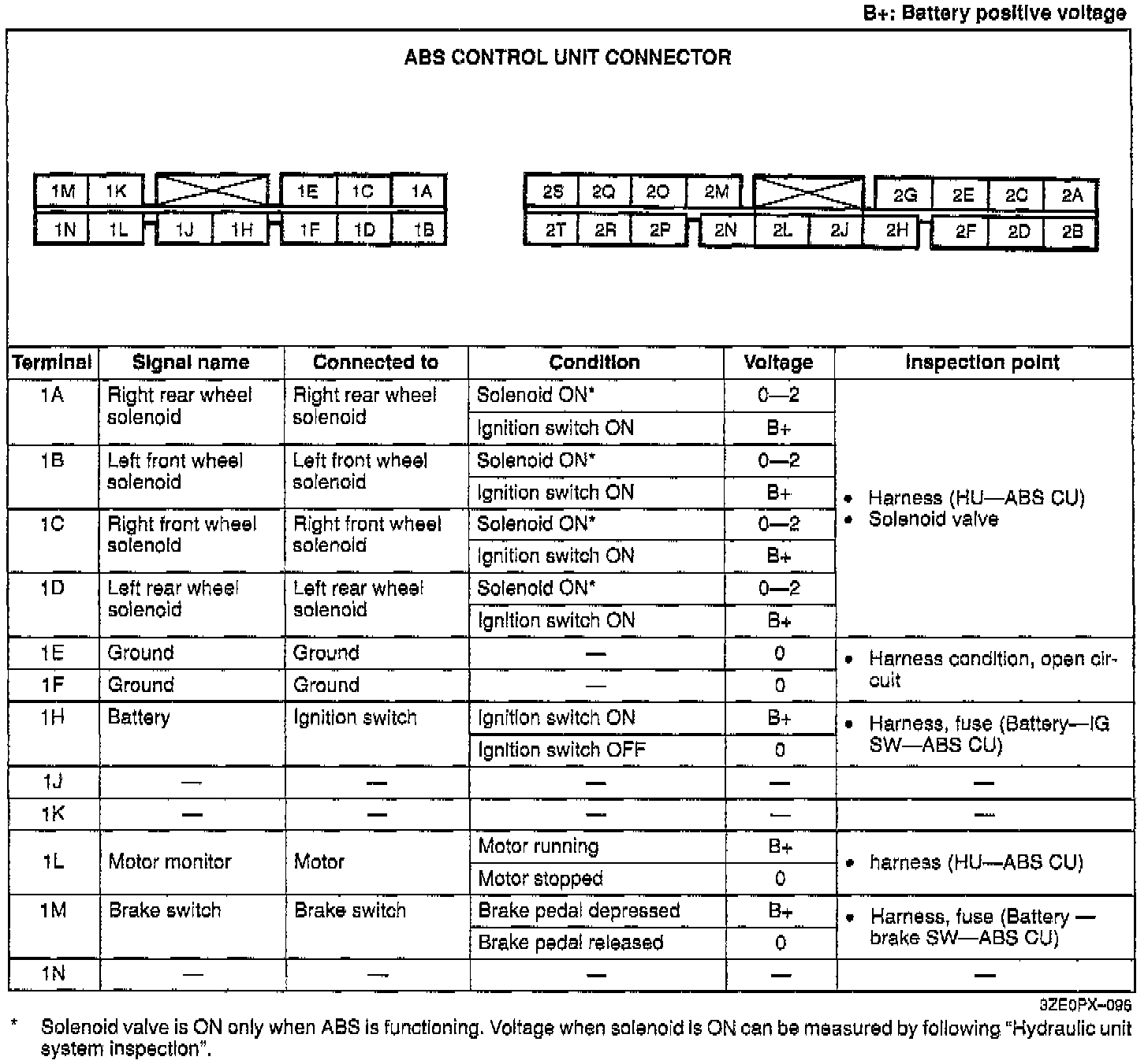

Part 1 Of 2:

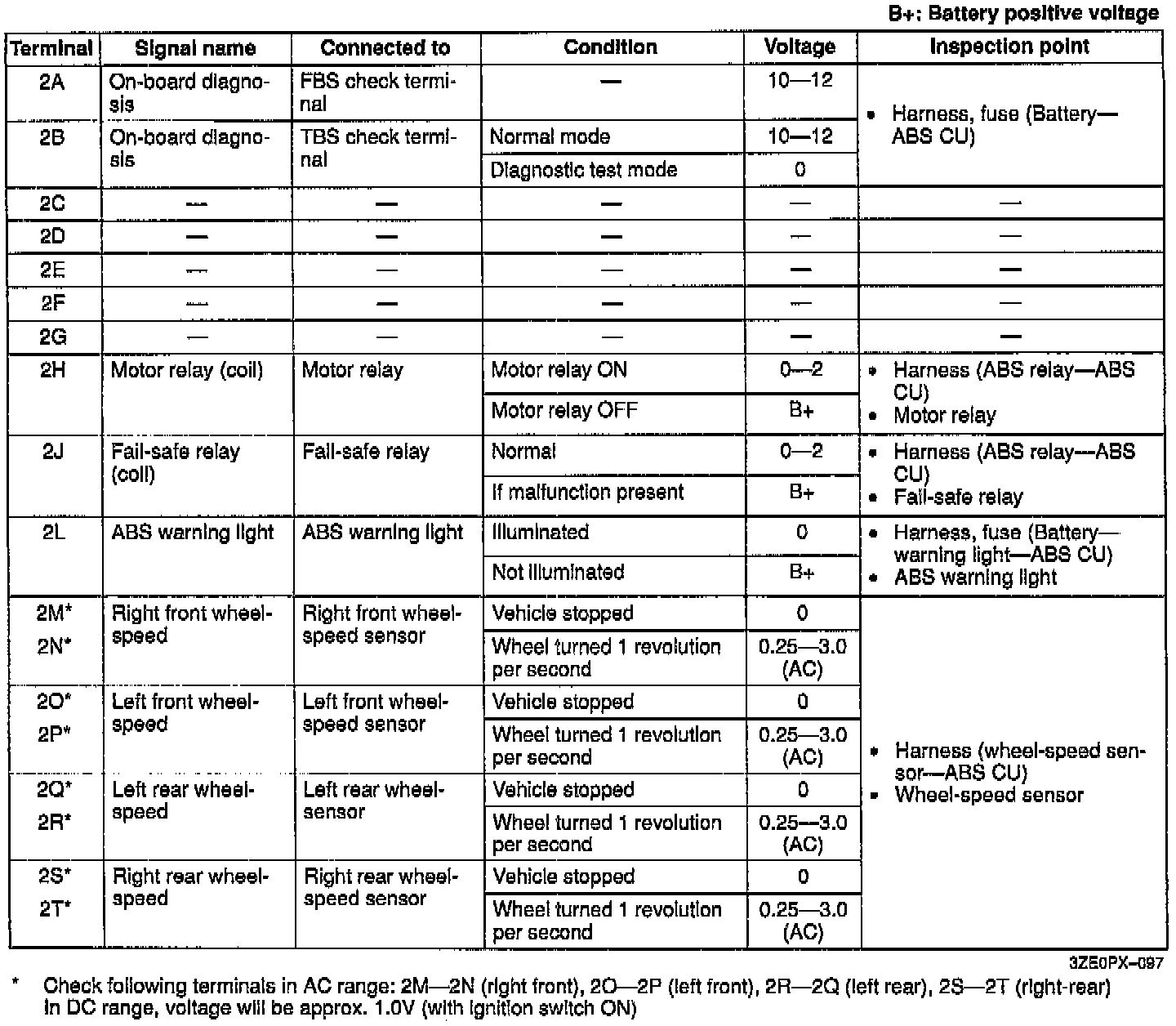

Part 2 Of 2:
