Home
>>
Mazda
>>
1995
>>
Protege L4-1.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
Data Link Connector

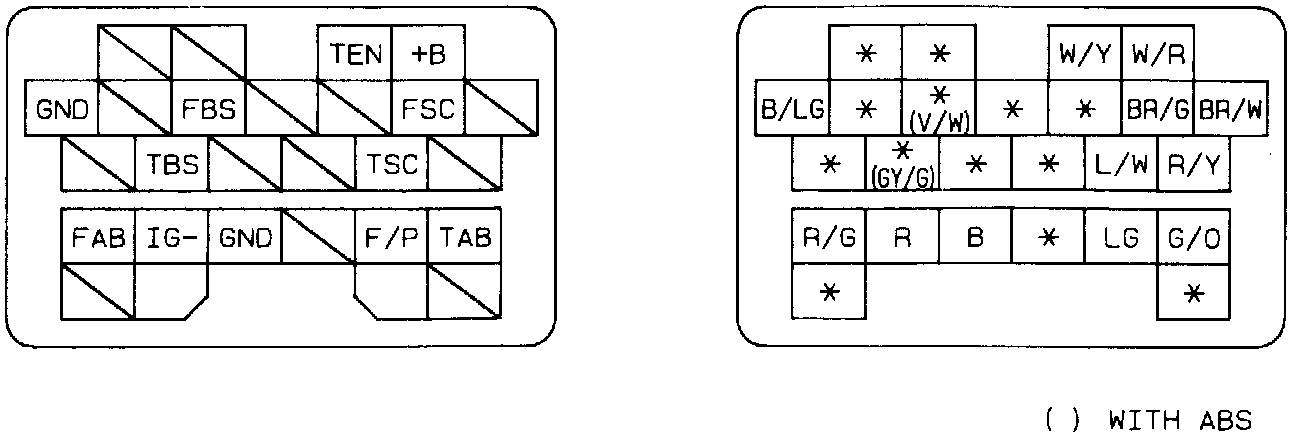

U-01 Data Link Connector (EM):
