Home >> Mazda >> 1995 >> Protege L4-1.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module

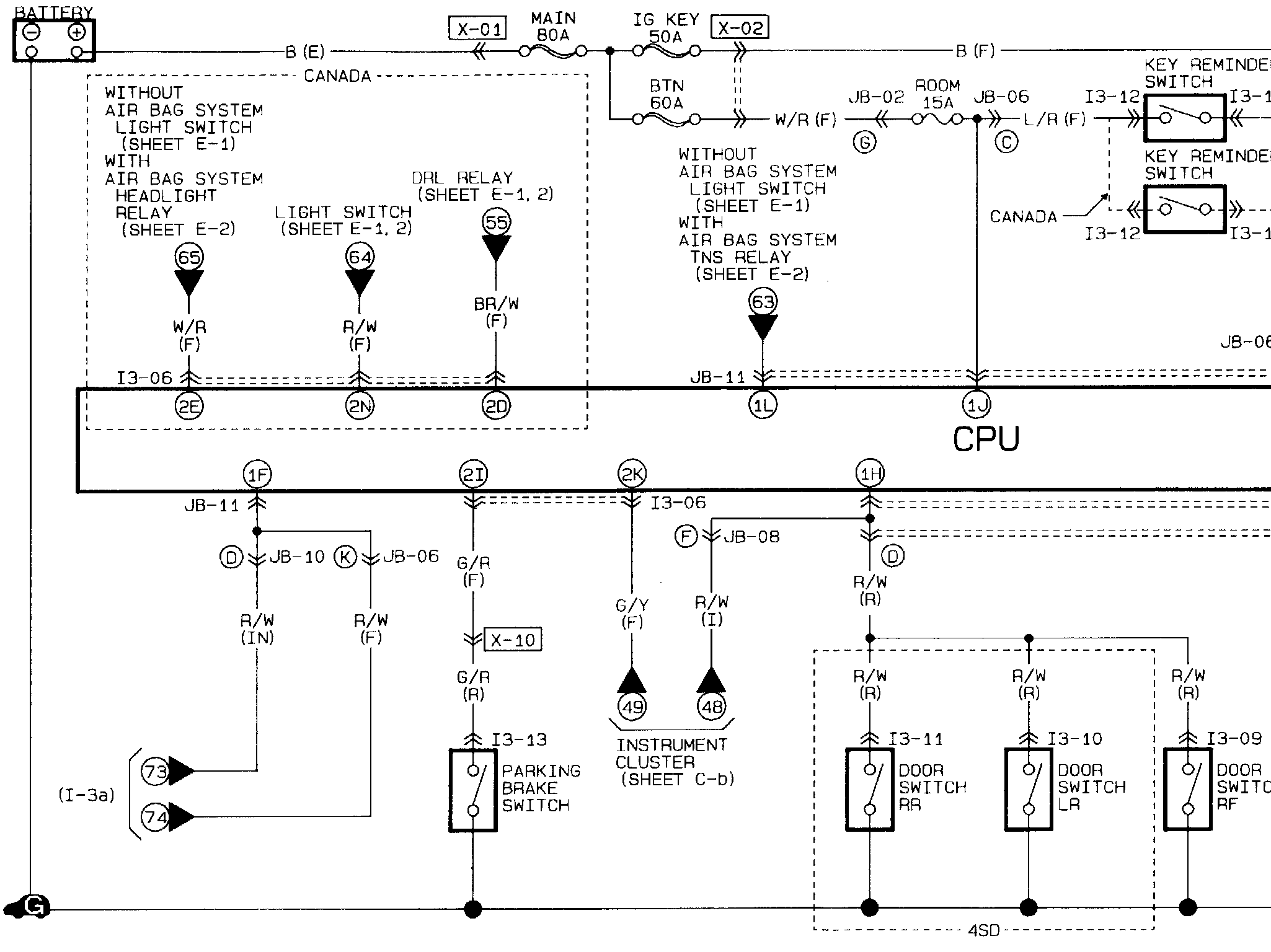

Central Control Module

���Central Processing Unit (CPU):
