Crankshaft Position Sensor: Testing and Inspection
INSPECTIONResistance
1. Disconnect the crankshaft position sensor connector.

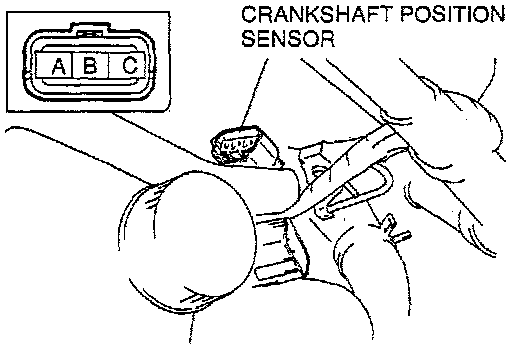

2. Measure the resistance between terminals A and B by using an ohmmeter.
Specification: 500-600 Ohms [20°C {68 °F}]
3. If not as specified, replace the crankshaft position sensor.
Air gap

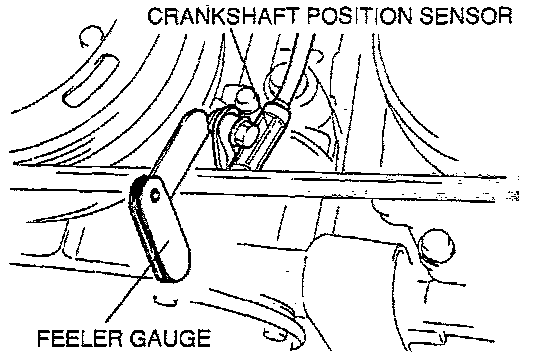

1. Measure the air gap between the crankshaft pulley and the crankshaft position sensor by using a feeler gauge.
Specification: 0.5-1.5 mm (0.020-0.059 in)
2. If not as specified, replace the crankshaft pulley or the crankshaft position sensor.
