Audio System - Delayed Sound Production When Cold
Bulletin No.: 011/95Issued: 7/30/95
Revised: 8/10/95
Category
T
Applicable Model/s
1995 Protege
(ES & LX)
Subject
NO SOUND FROM AUDIO
The "Applicable Models" portion of this bulletin is revised. Replace the original bulletin with this revised copy.
[Changed]
APPLICABLE MODELS/VINS

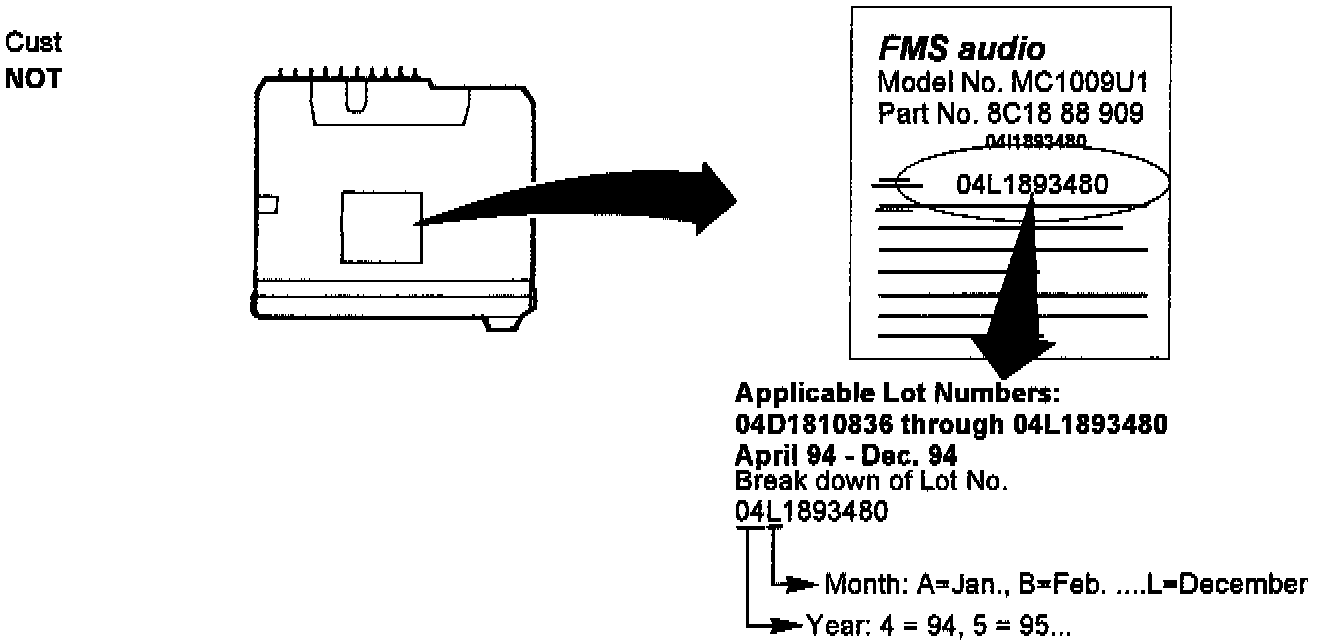

Identify by "lot" number on audio unit (see Applicable).
DESCRIPTION
When turning on the audio system during cold temperatures (32 degrees F (0 degrees C) or lower) sound from the speaker(s) can take up to 10 seconds. This condition is created by cold temperatures affecting the power transistor's operating voltage.
To prevent the cold temperature from affecting the operating voltage, the circuitry of the audio unit has been changed.
NOTE:
There are no part number changes. Refer to the "Lot" number to identify new and old audio components.
WARRANTY INFORMATION
(Applies To Verified Customer Complaints On Vehicles Covered Under Normal Warranty.)
Warranty Type: A
Symptom Code: B1
Damage Code: AB
Part Number Main Cause: BC1B 79 020
Quantity: 0
Operation Number: T1102XRX
Labor Hours: 0.3Hrs.
