Bearing Cover Component

NOTE: To remove and install this component, see automatic transaxle overhaul procedure. Procedures

DISASSEMBLY / ASSEMBLY
1. Disassemble in the order indicated in the illustration, referring to disassembly note.
2. Assemble in the reverse order of disassembly indicated in the illustration, referring to assembly procedure.

Disassembly Note





Bearing Race (2)

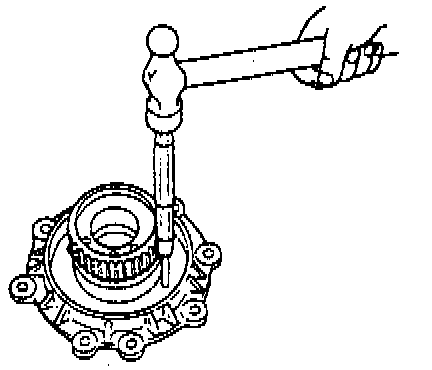

Remove the bearing race by using a pin punch and a hammer.

Assembly Procedure
1. Apply ATF to the new O-ring and install in to bearing cover. O-ring inner diameter 82.9 mm (3.264 inch).





2. Press the new bearing race into the bearing cover.

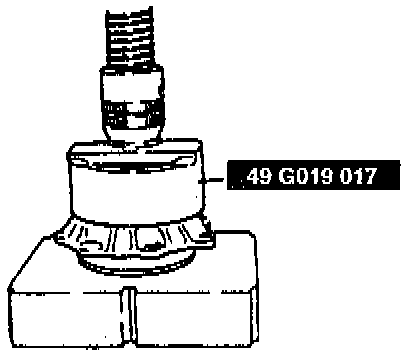

3. Press the new oil seal into the bearing cover by using the SST.
