Mazda
>>
1995
>>
Protege L4-1839cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Cylinder Head Gasket
Cylinder Head Gasket

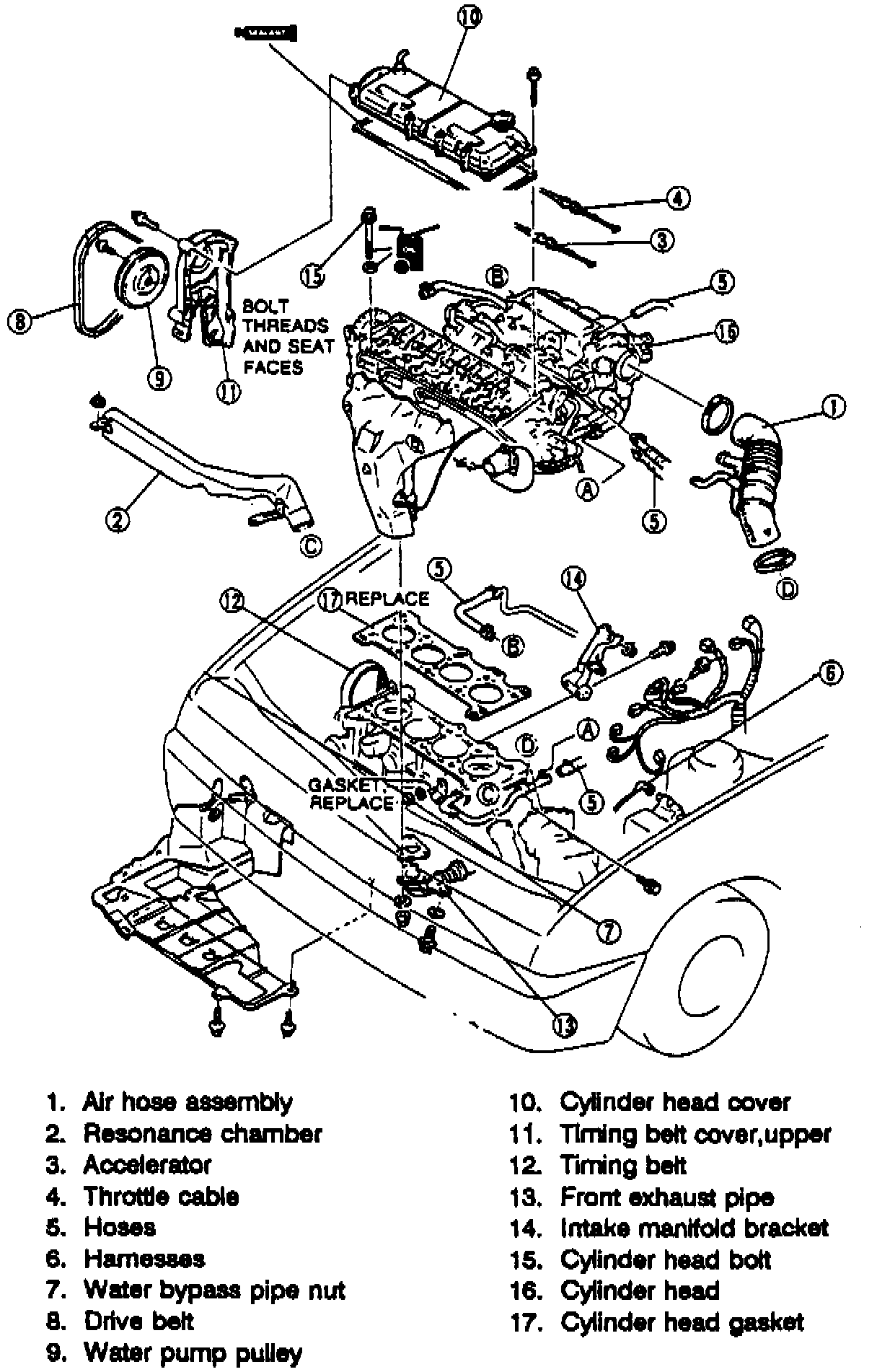

Fig. 13 Cylinder Head Replacement:
