Throttle Full Close Switch: Testing and Inspection
Inspection1. Verify that the throttle valve is at the closed throttle position.
2. Disconnect the throttle position sensor connector.

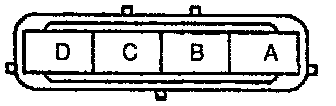

3. Check for continuity between the terminals A and B by using an ohmmeter.
4. If no continuity, adjust the throttle position sensor.

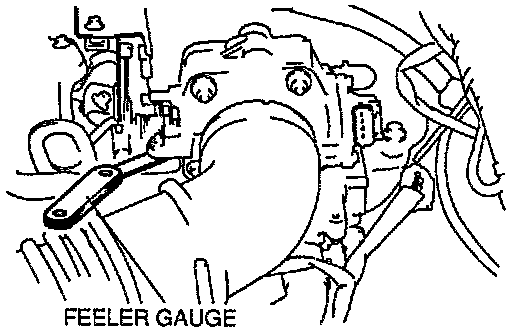

5. Insert a 0.50 mm (0.020 in) feeler gauge between the throttle adjusting screw (TAS) and the throttle lever. Verify that there is no continuity.
6. If there is continuity, adjust the throttle position sensor.
