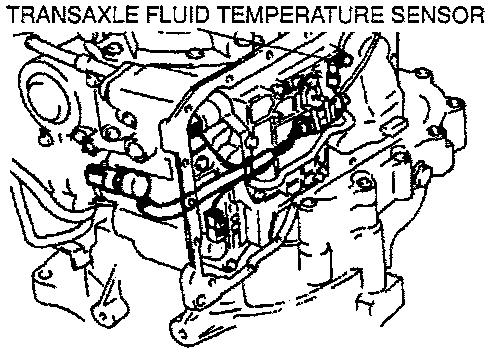

Transmission Temperature Sensor/Switch: Service and Repair

Replacement
1. Remove the control valve body.




2. Apply ATF to a new O-ring and install it on a new solenoid valve connector.

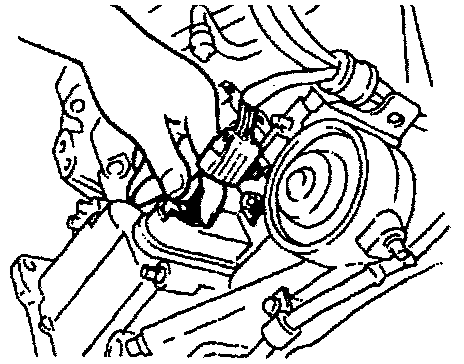

3. Install the solenoid connector into the transaxle case.

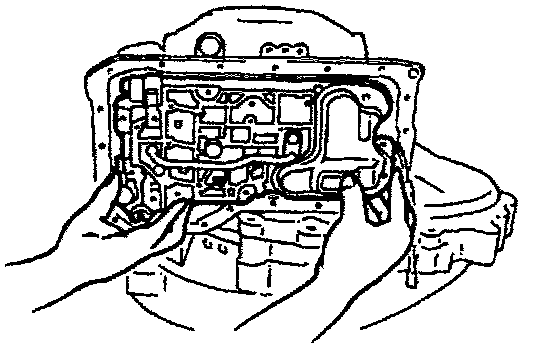

4. Install the control valve body.
5. Connect the negative battery cable.
