Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1995
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Central Control Module
>>
Specifications
>>
Terminals 1A-1V
Terminals 1A-1V

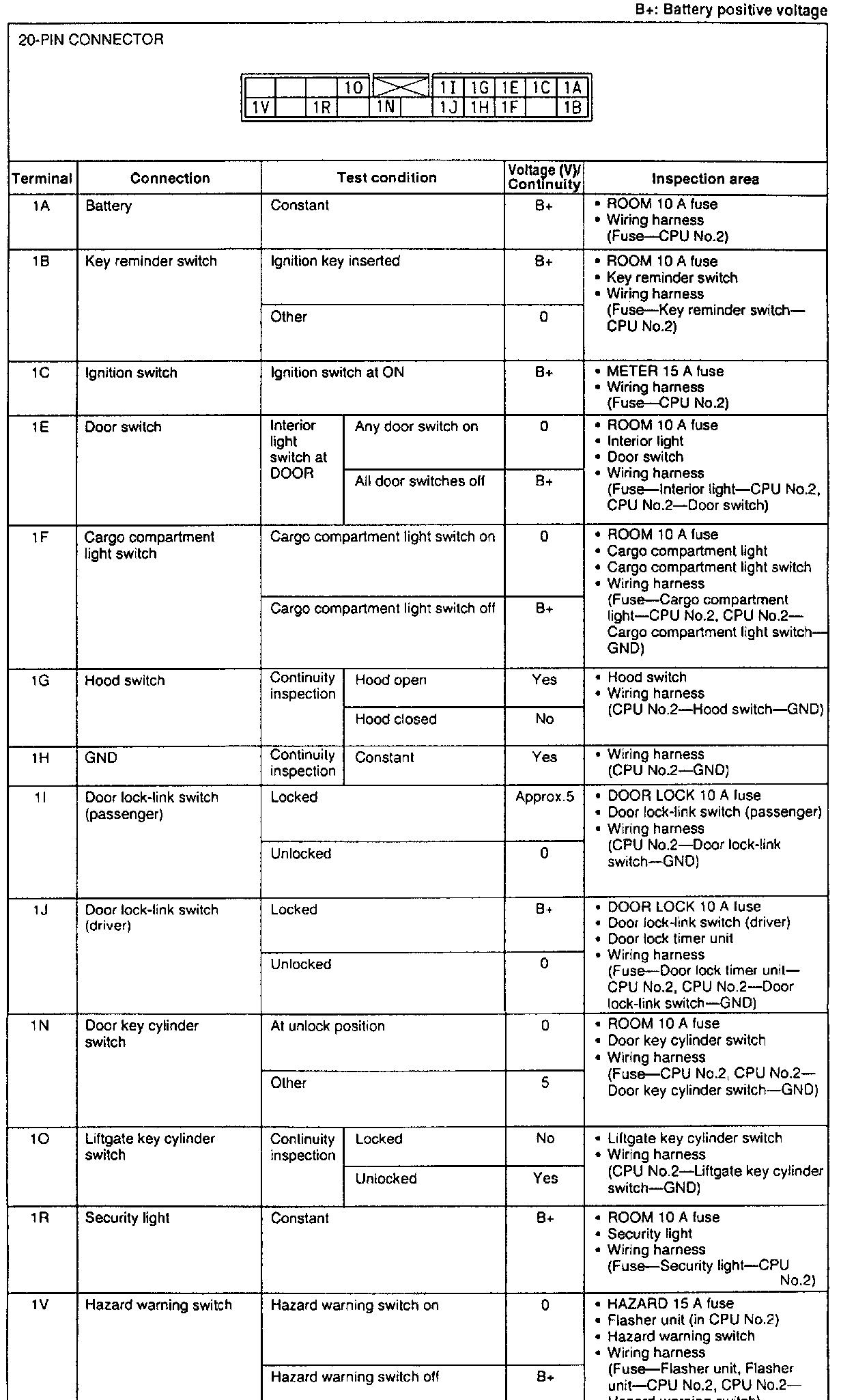

��Terminal Voltage Charts:
