Central Control Module
>>
Specifications
>>
Terminals 1J-1V
Terminals 1J-1V

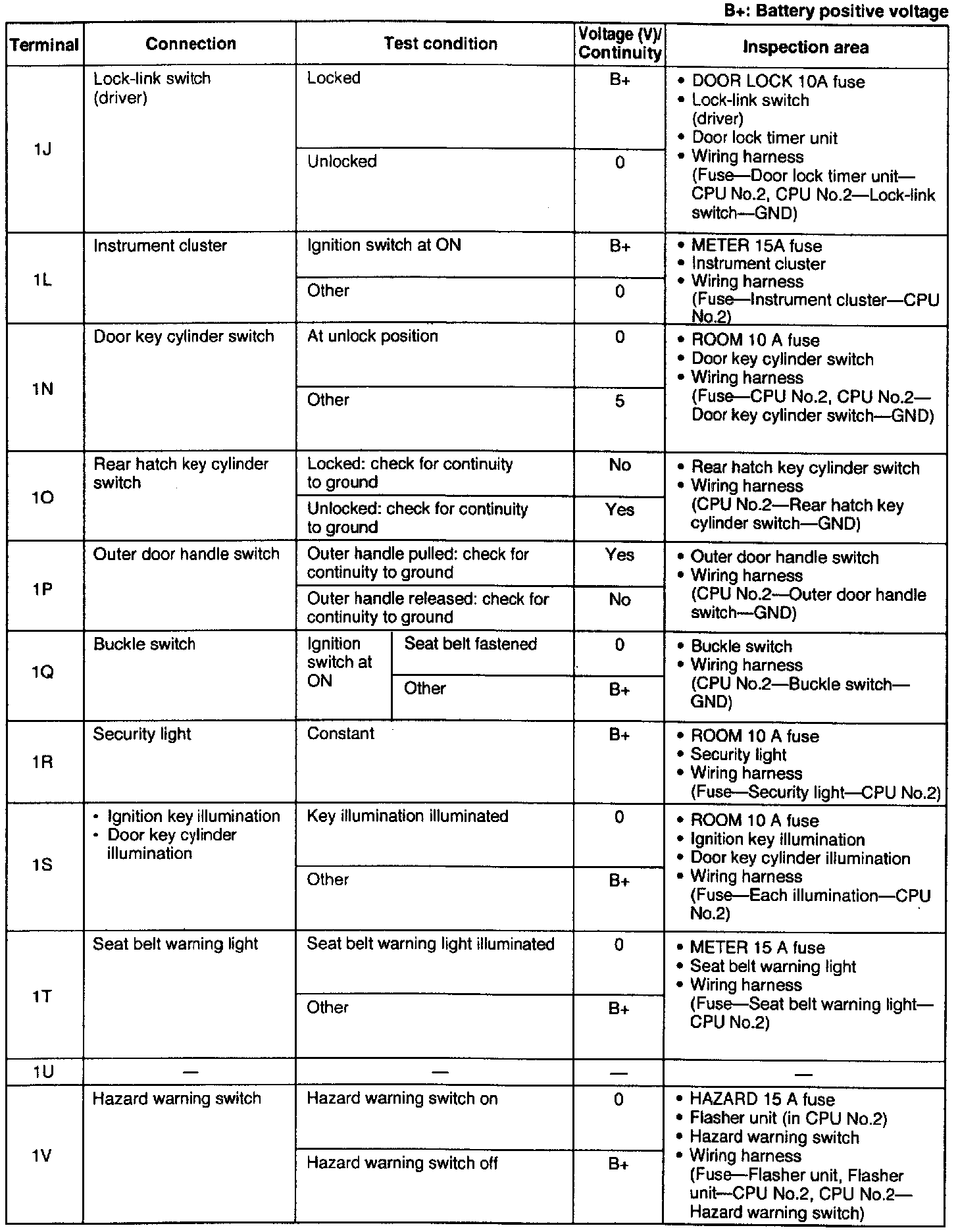

Terminal Voltage Charts:
