Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1995
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Cruise Control
>>
Specifications
>>
Terminals A-G
Terminals A-G

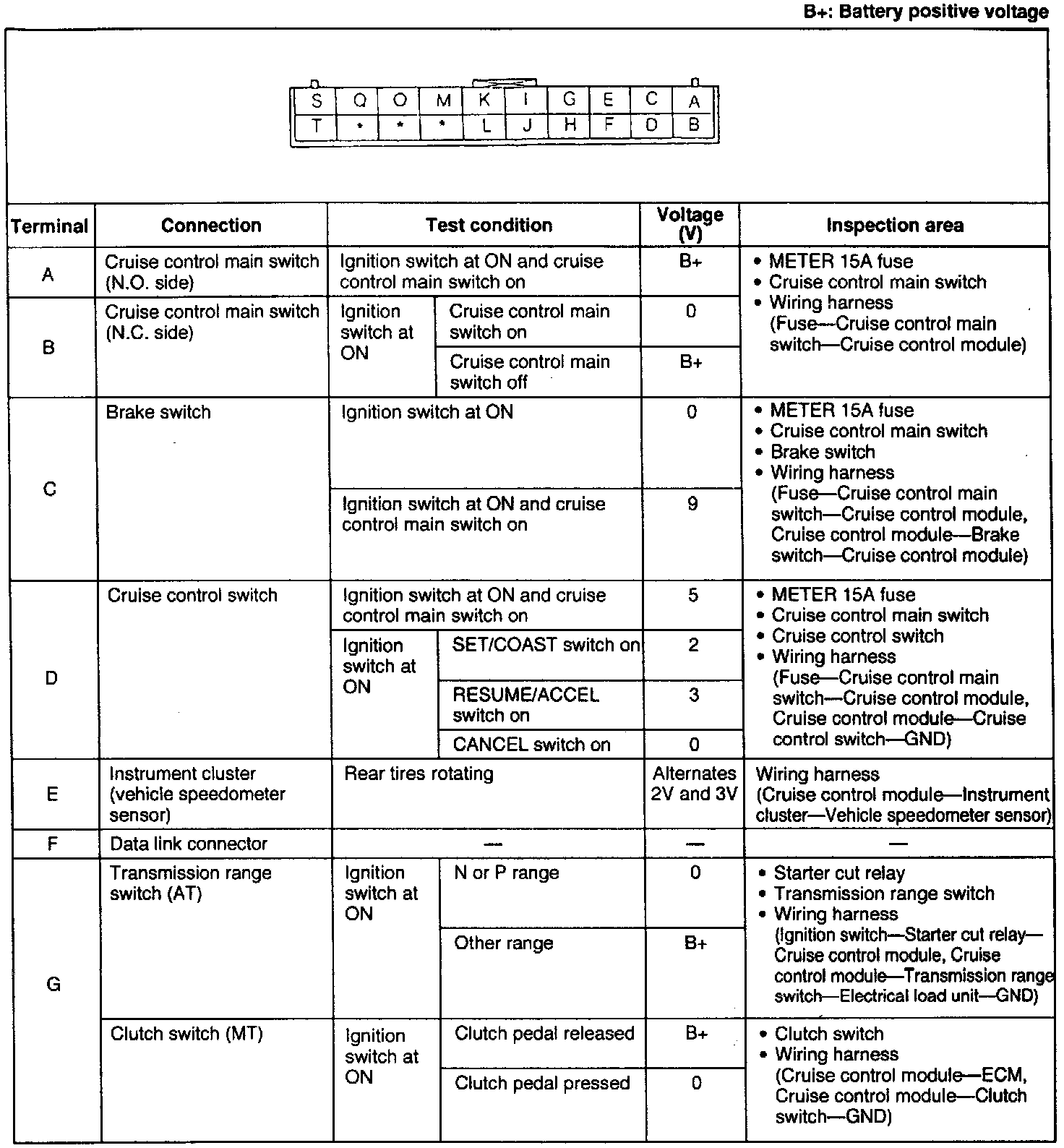

Terminal Voltage Charts:
