Home >> Mazda >> 1995 >> RX7 2RTR-1308cc 80 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Central Control Module

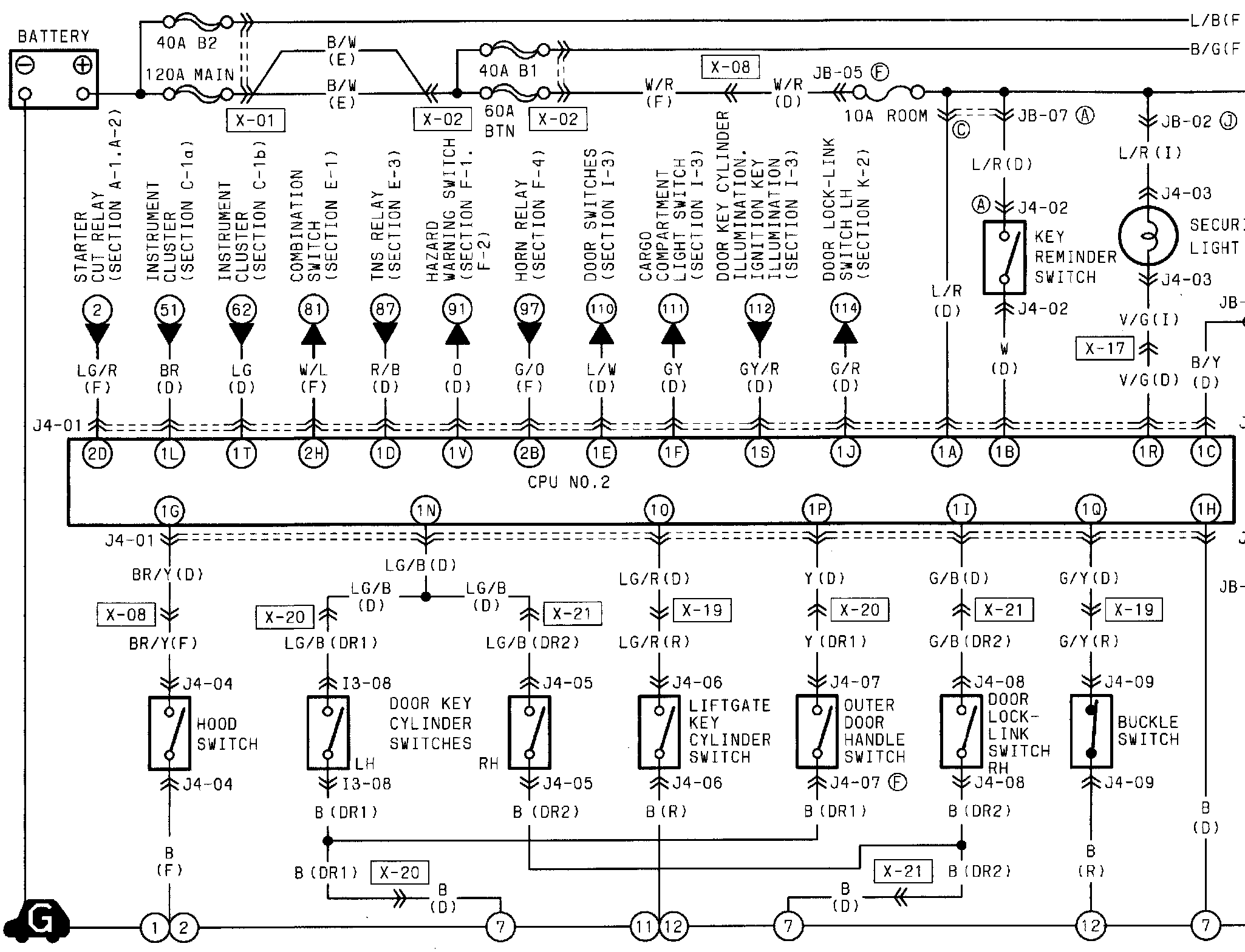

Central Control Module

r�Central Processing Unit (CPU), Theft-Deterrent System:
