Interior Lighting Module
>>
Locations
>>
Connector Locations
Connector Locations

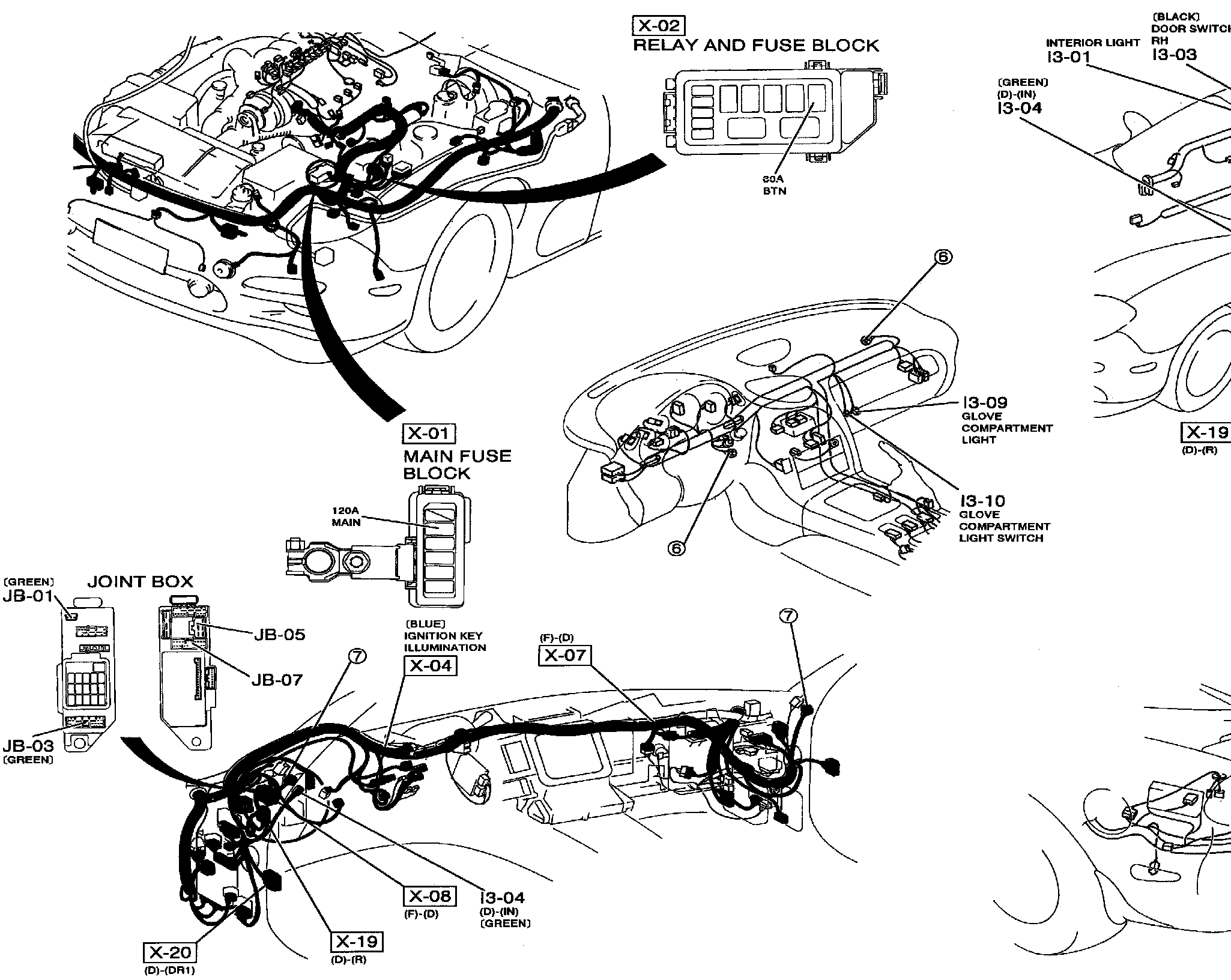

1�Connector Locations:
