Power Steering Pressure Switch: Testing and Inspection







Inspection (On the vehicle)

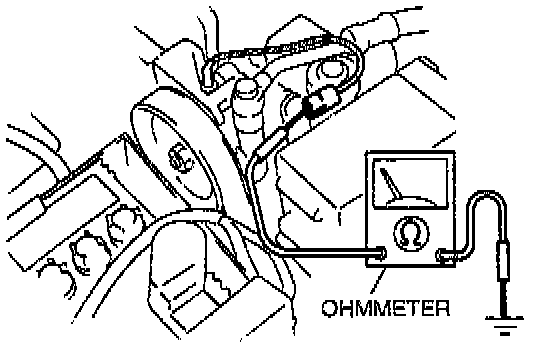

1. Disconnect the power steering pressure switch connector.

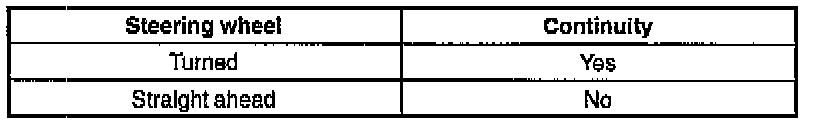

2. Start the engine, and check continuity of the switch.
3. If not as specified, replace the power steering pressure switch.
