Quick Diagnosis Chart

These Quick Diagnosis Charts show the relationship between troubleshooting items and inspection points.

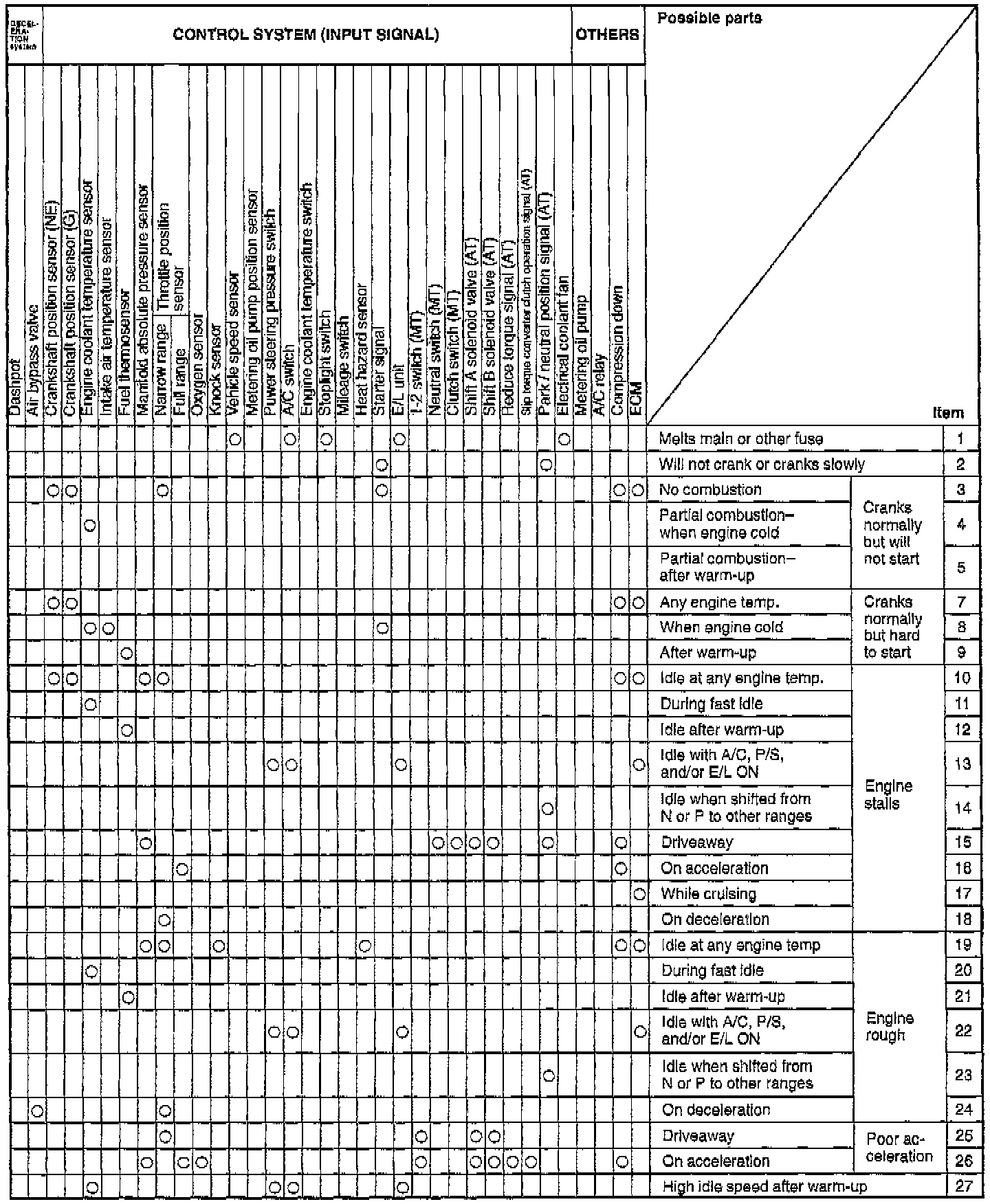

Part 1 Of 2:

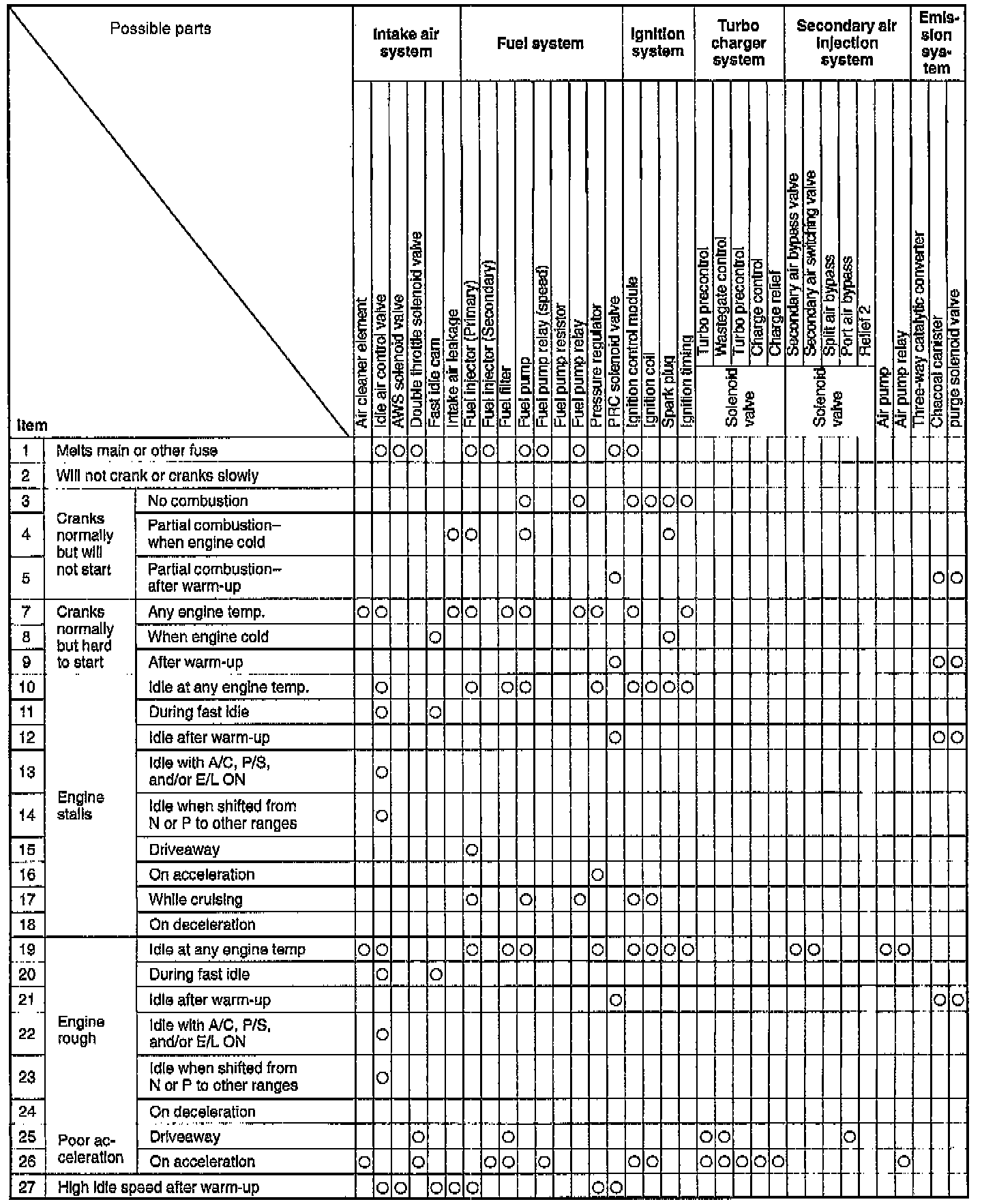

Part 2 Of 2:

Items 1 Through 27

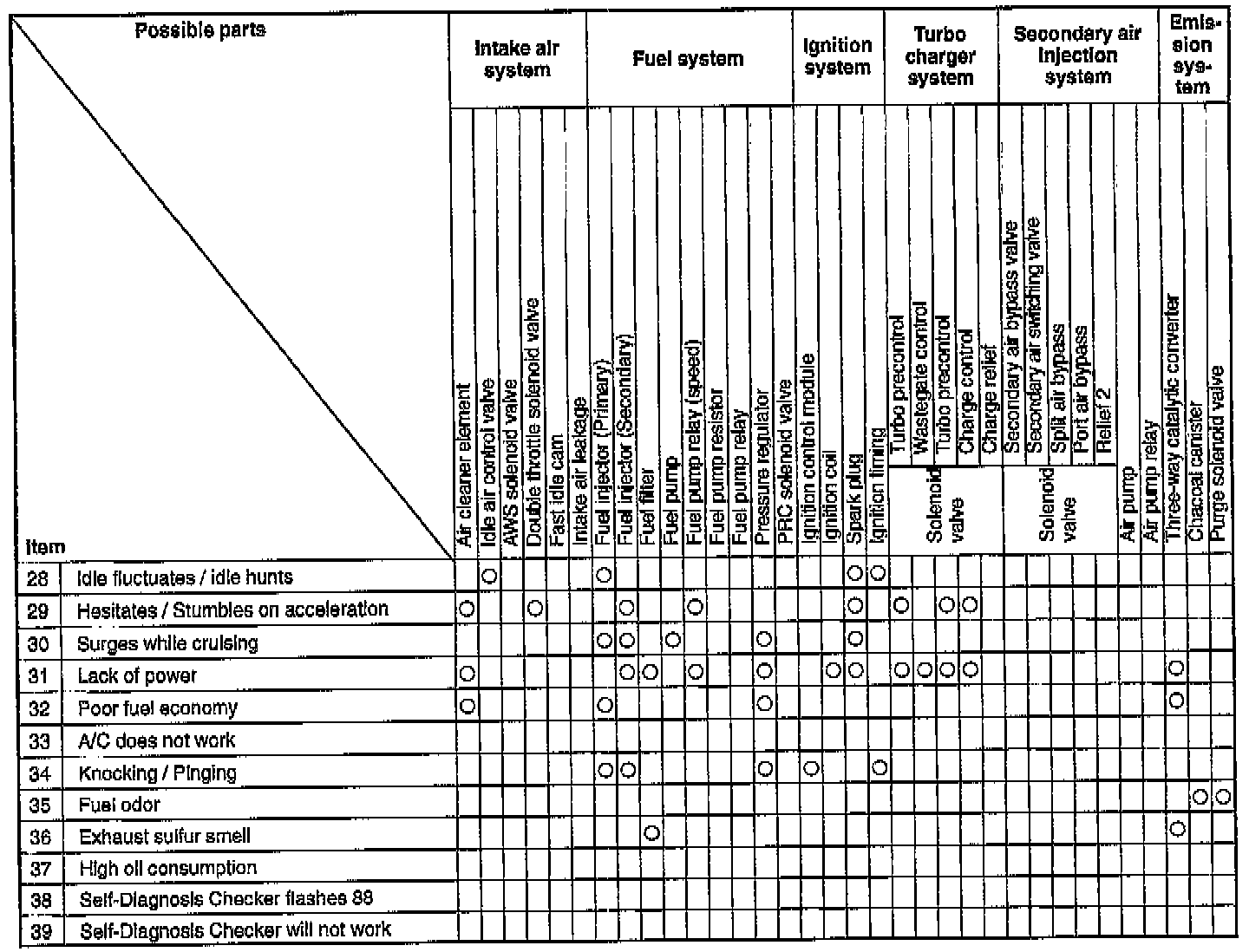

Part 1 Of 2:

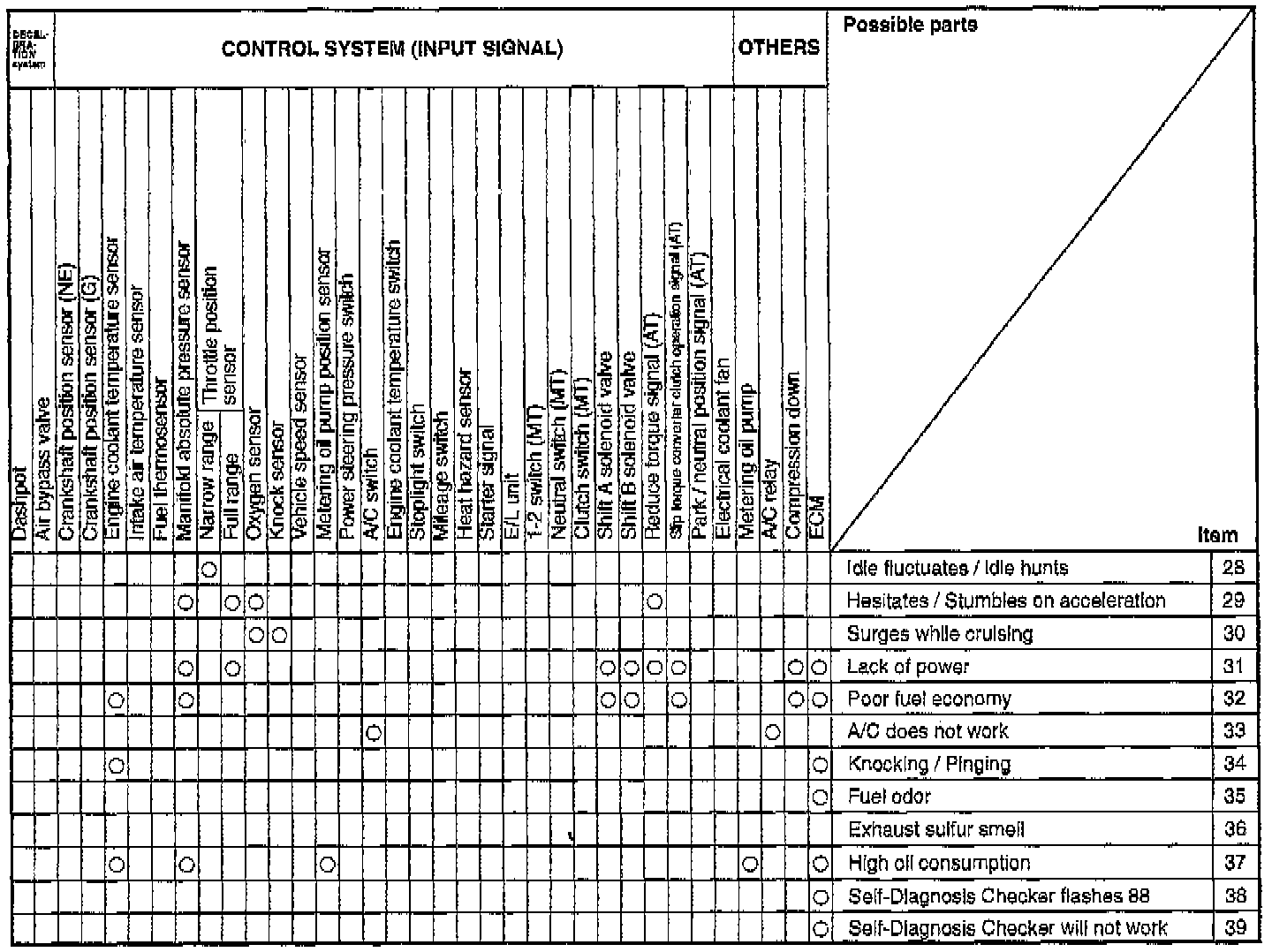

Part 2 Of 2:

Items 28 Through 39
