Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1995
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Central Control Module
>>
Terminals 2A-2J
Terminals 2A-2J

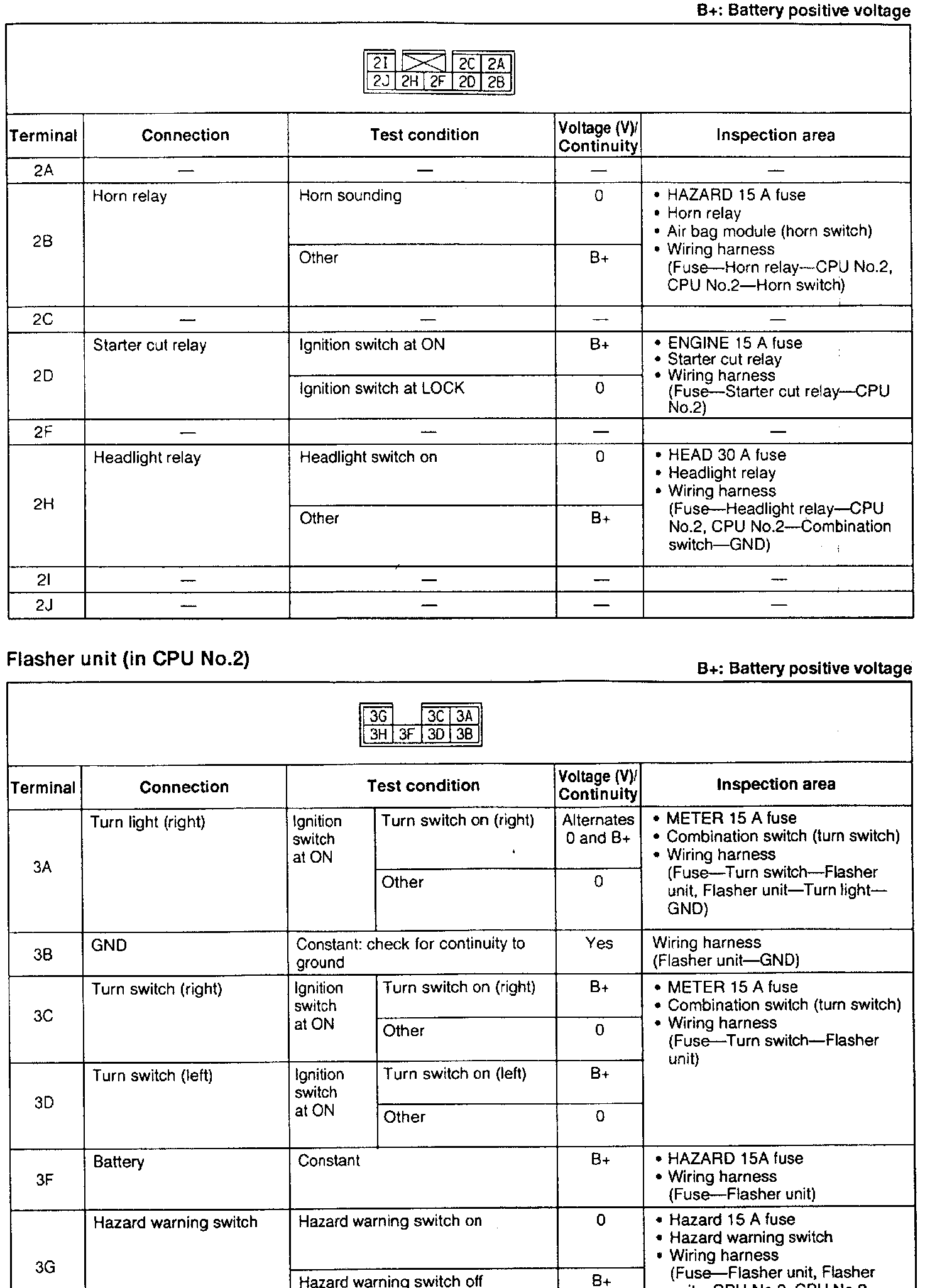

0W�Terminal Voltage Charts:
