Home >> Mazda >> 1995 >> RX7 2RTR-1308cc 80 >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Cruise Control >> Terminals H-T

Terminals H-T

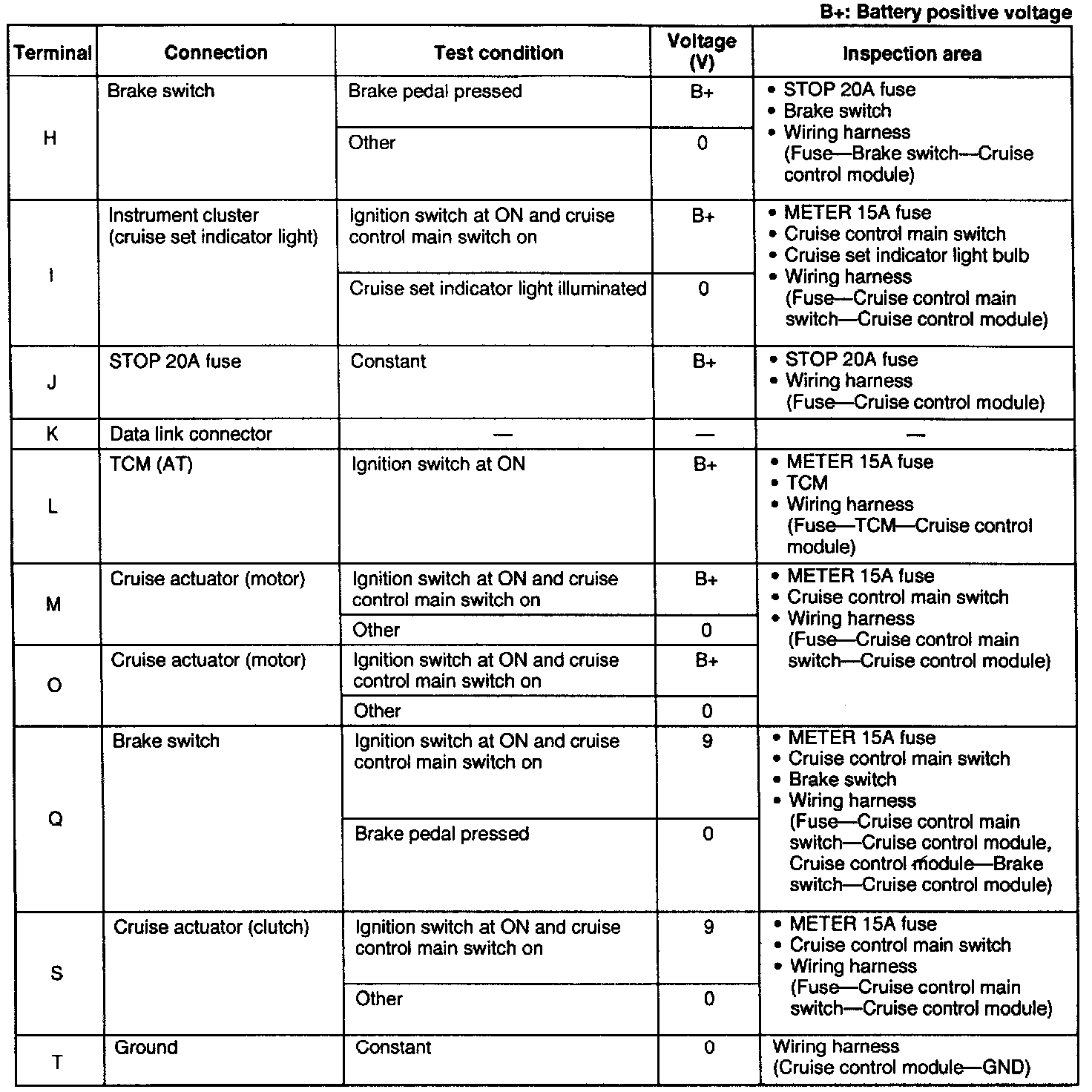

Terminal Voltage Charts:
