Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Terminals 2K-3H
Terminals 2K-3H

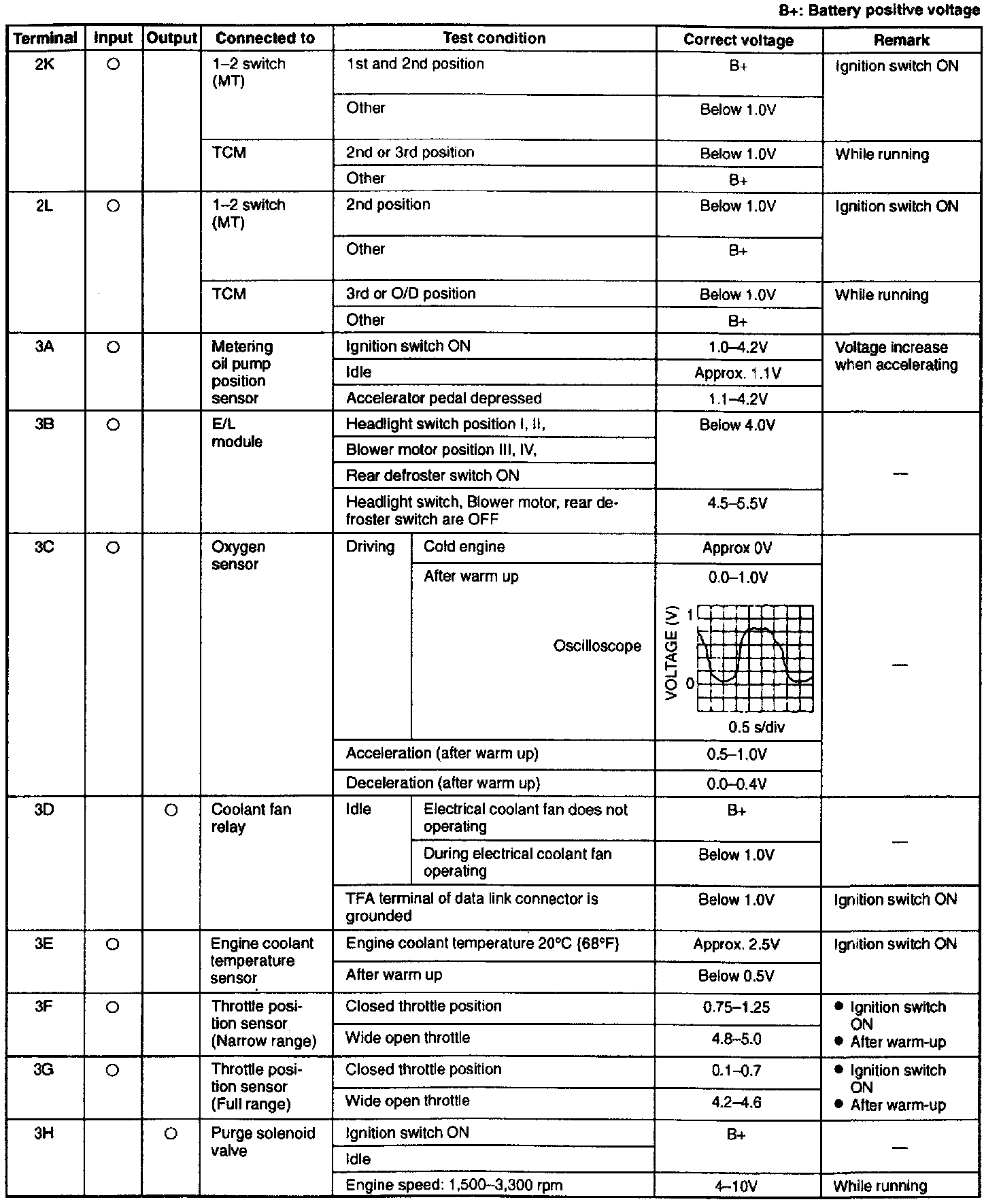

Terminal Voltage Charts:
