RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Terminals 3I-4G
Terminals 3I-4G

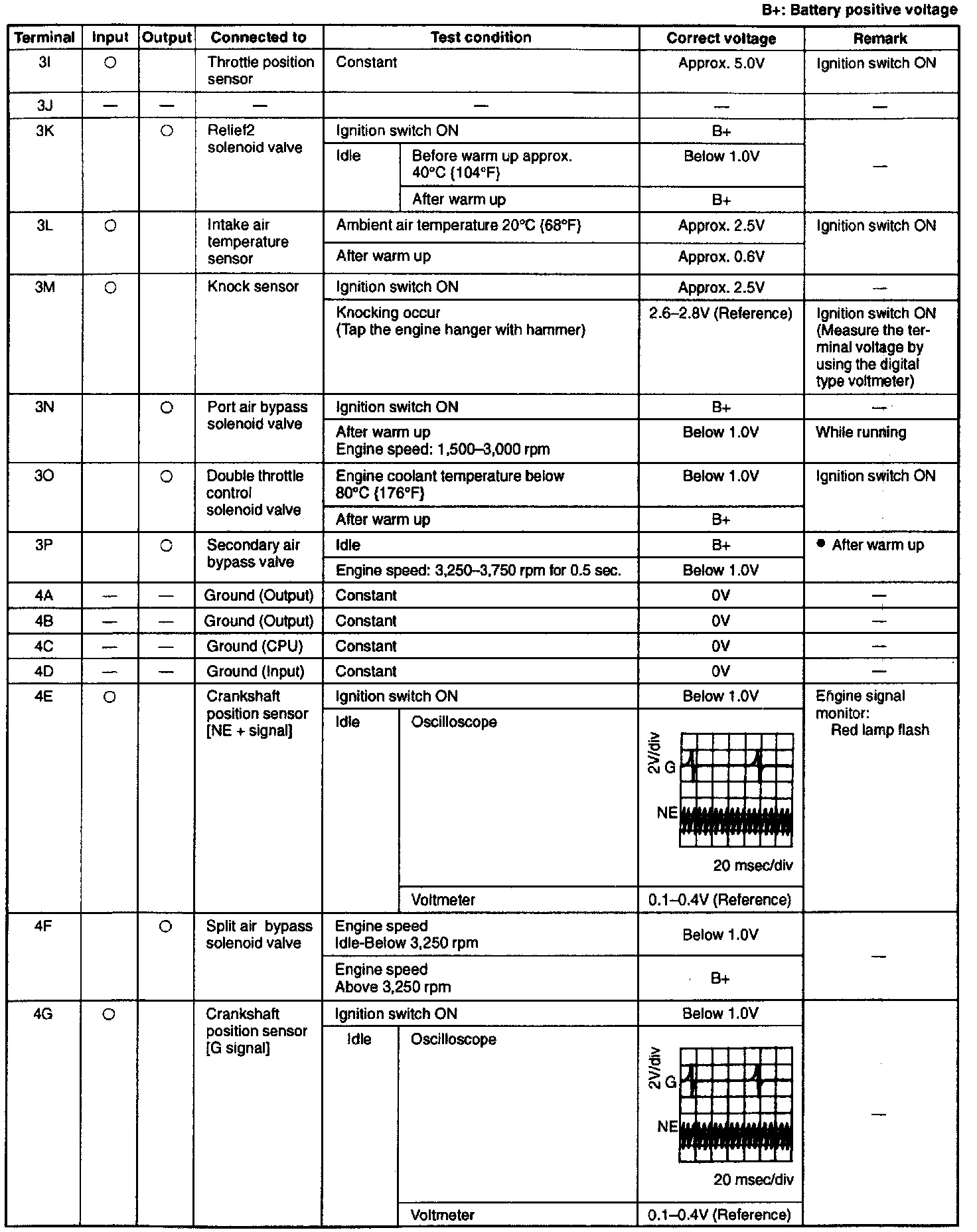

Terminal Voltage Charts:
