Output Speed Sensor

Inspection
1. Disconnect the negative battery cable.

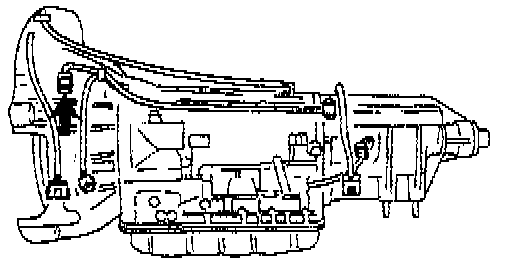

2. Disconnect output speed sensor connector.

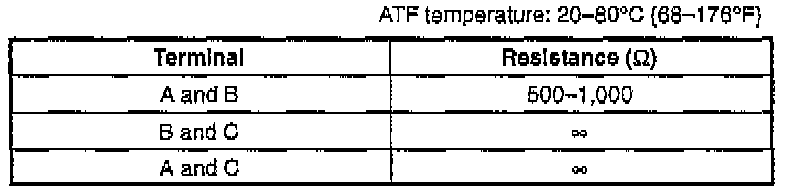

3. Measure the resistance between the terminals of the output speed sensor.







4. If not correct, replace the output speed sensor.
5. Connect the output speed sensor connection.
6. Connect the negative battery cable.
