Mazda
>>
1996
>>
B2300 2WD L4-2.3L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Instrument Panel
Instrument Panel

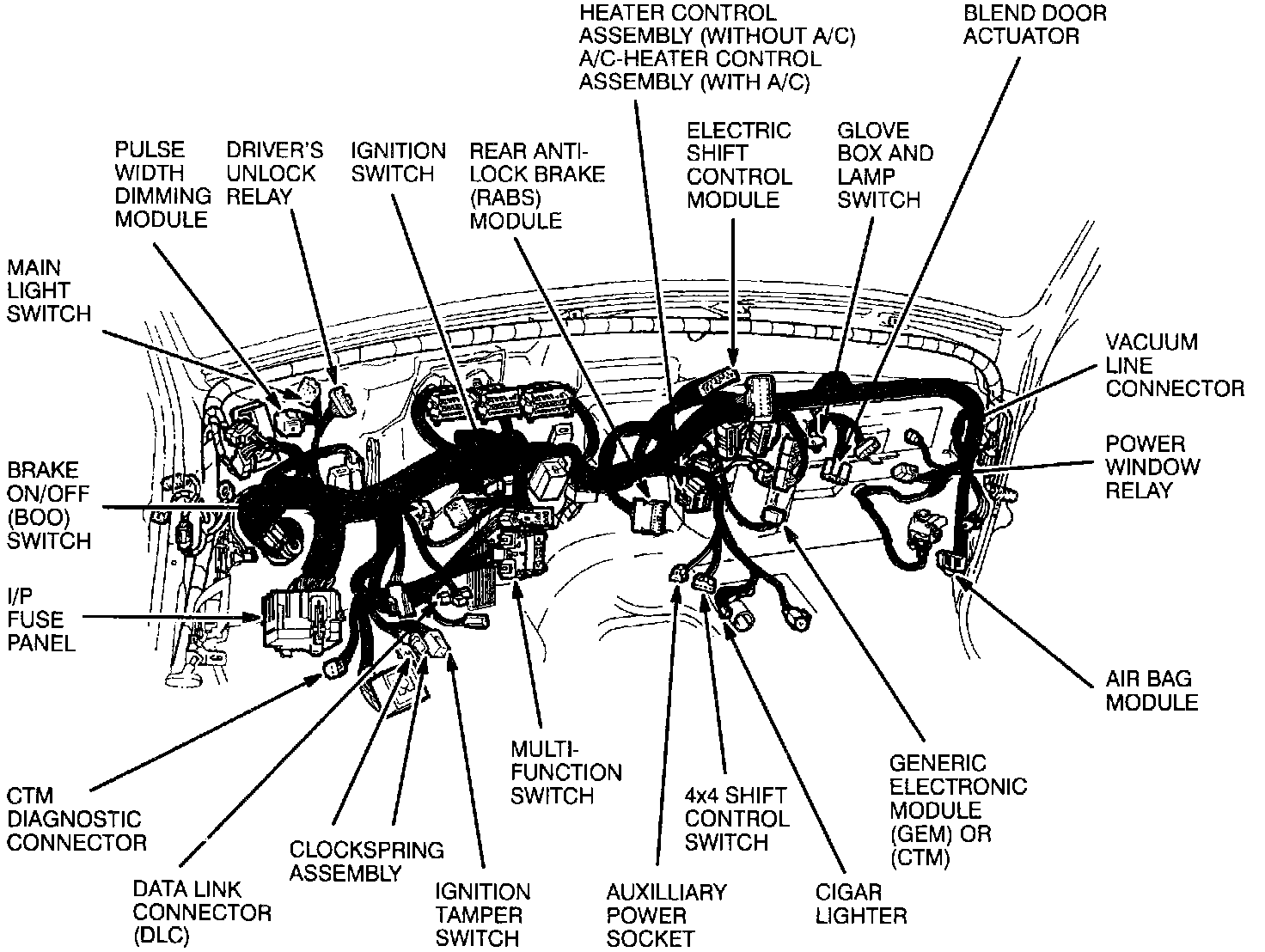

Parts Location-Instrument Panel:

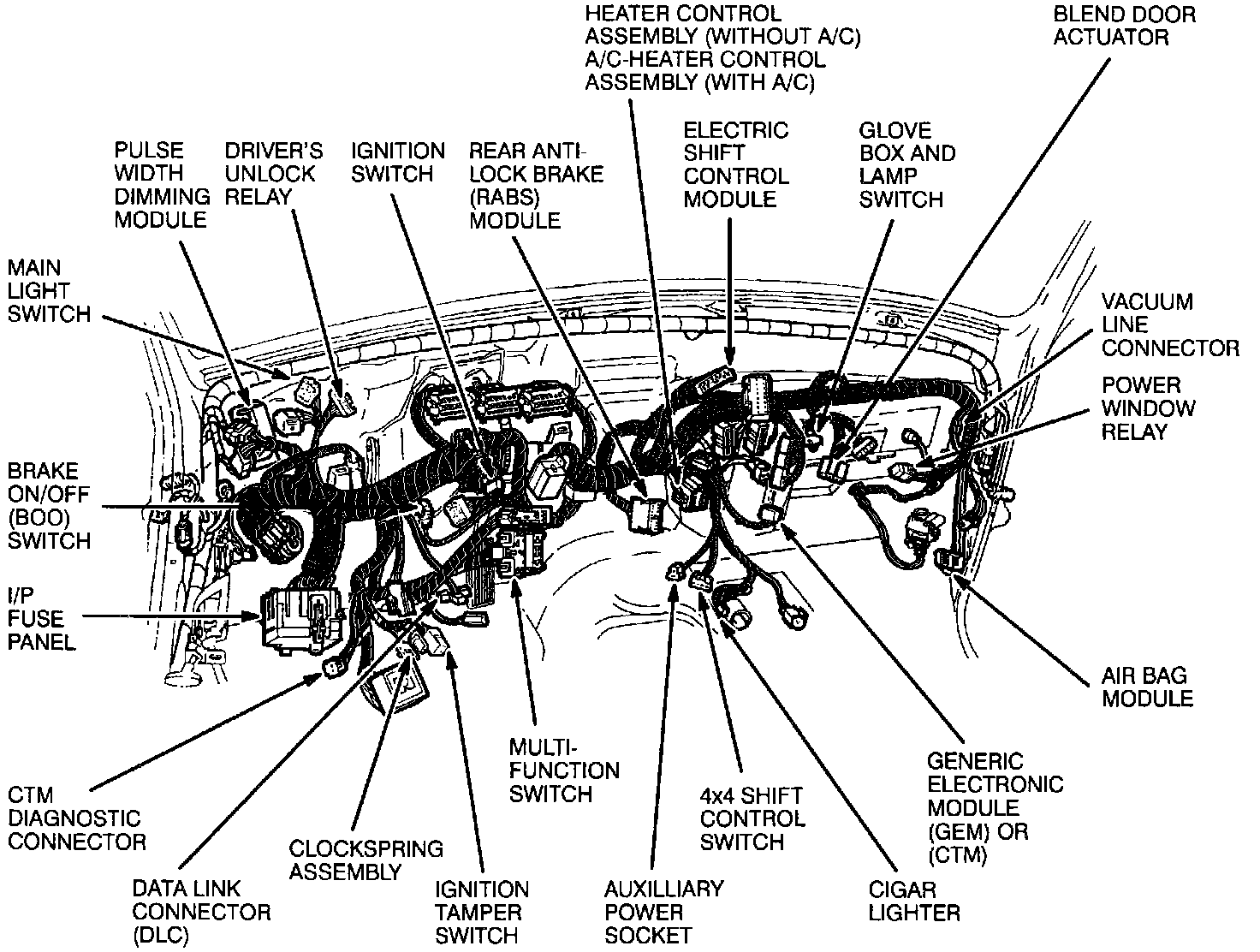

Parts Location-Instrument Panel:

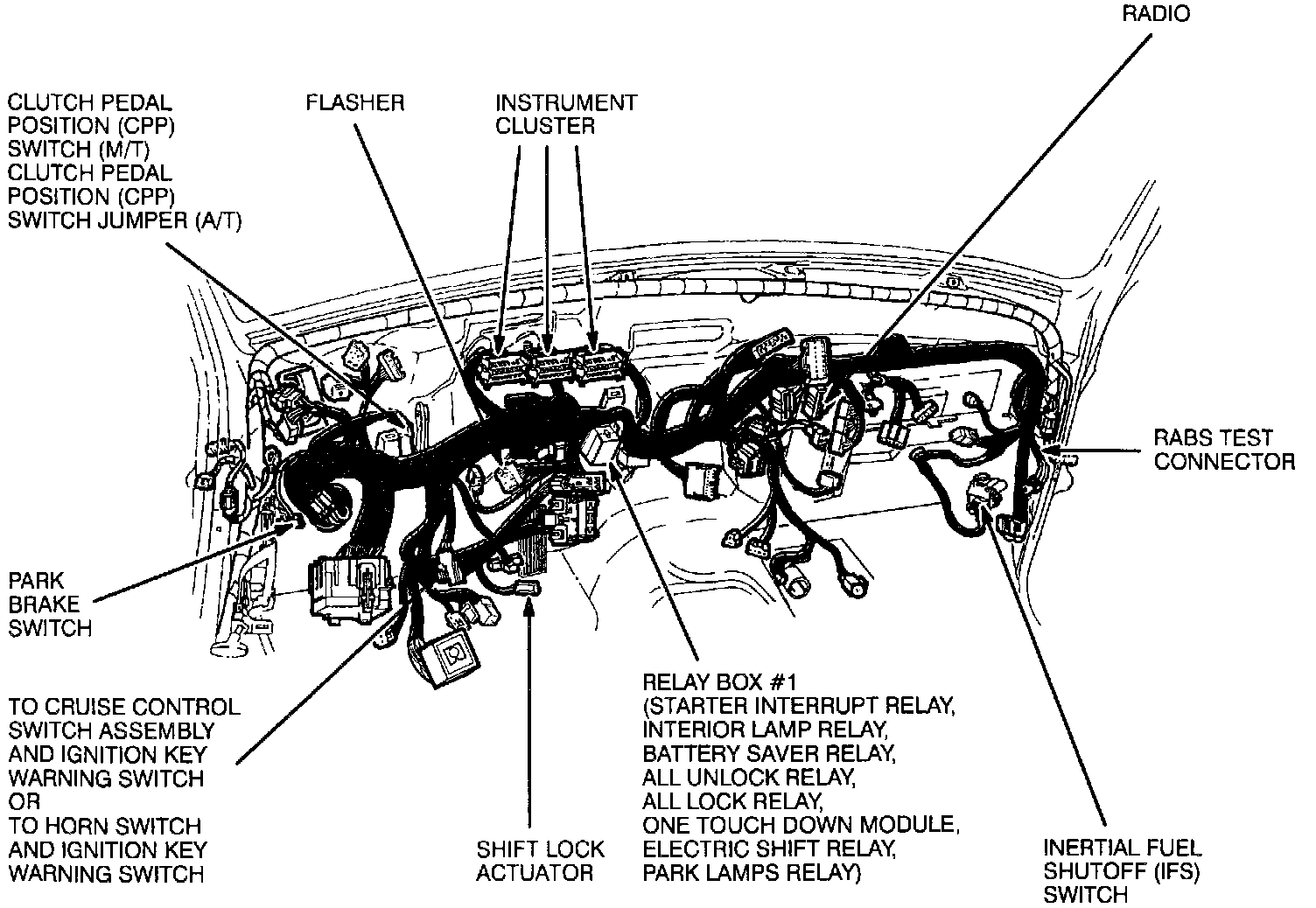

Parts Location-Instrument Panel:
