Home >> Mazda >> 1996 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Exterior Lighting Module >> E-2

E-2

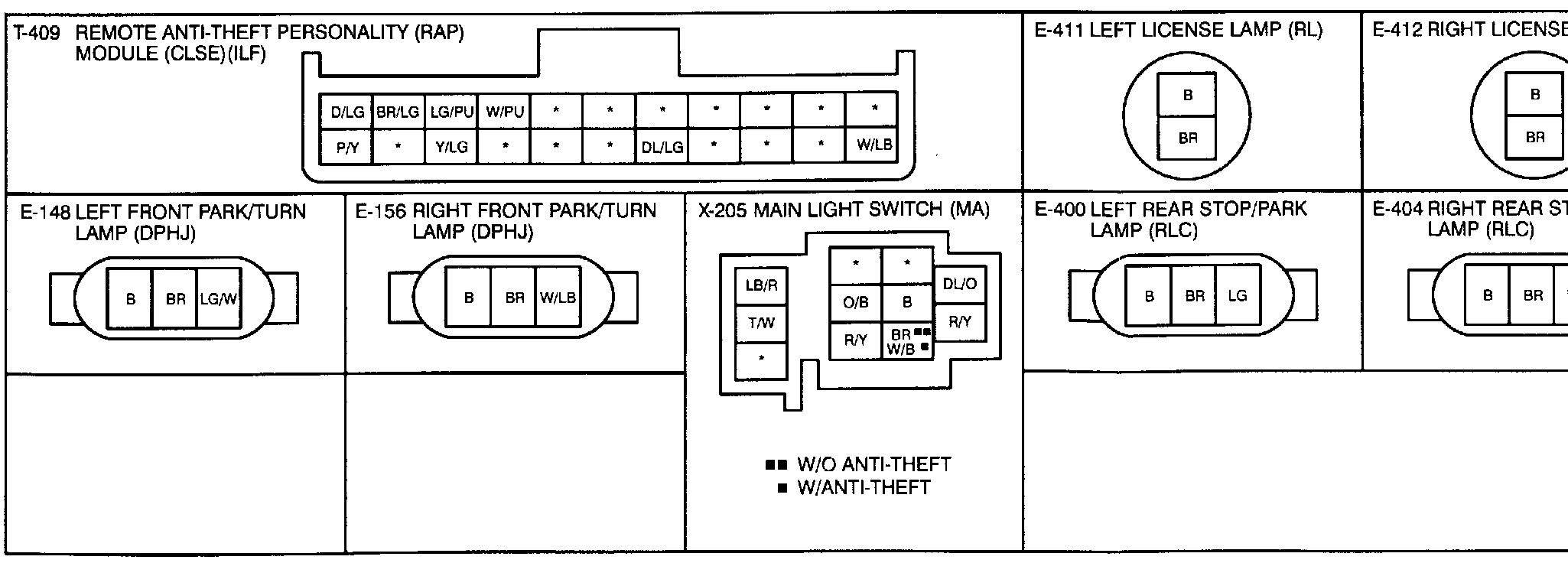

���Exterior Lamps-Connectors:
