Home >> Mazda >> 1996 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signals >> F-2

F-2

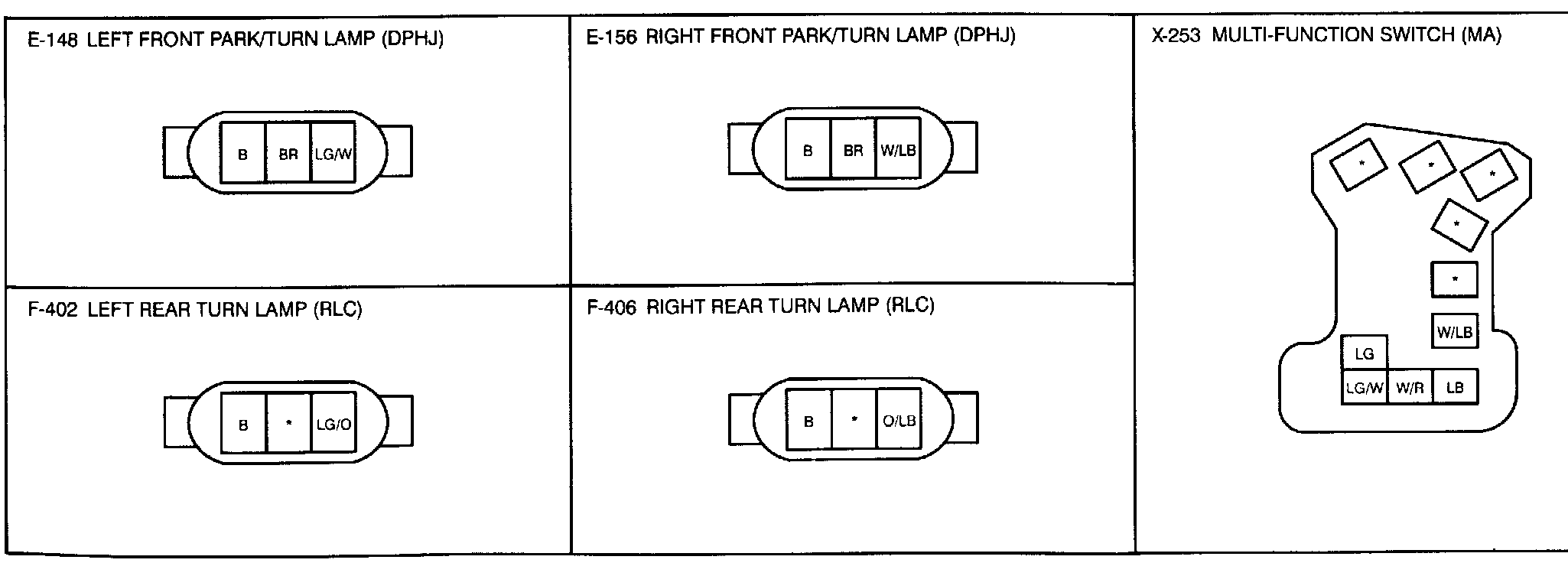

���vTurn And Hazard Lamps-Connectors:
