Home >> Mazda >> 1996 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> General Module >> T-1A

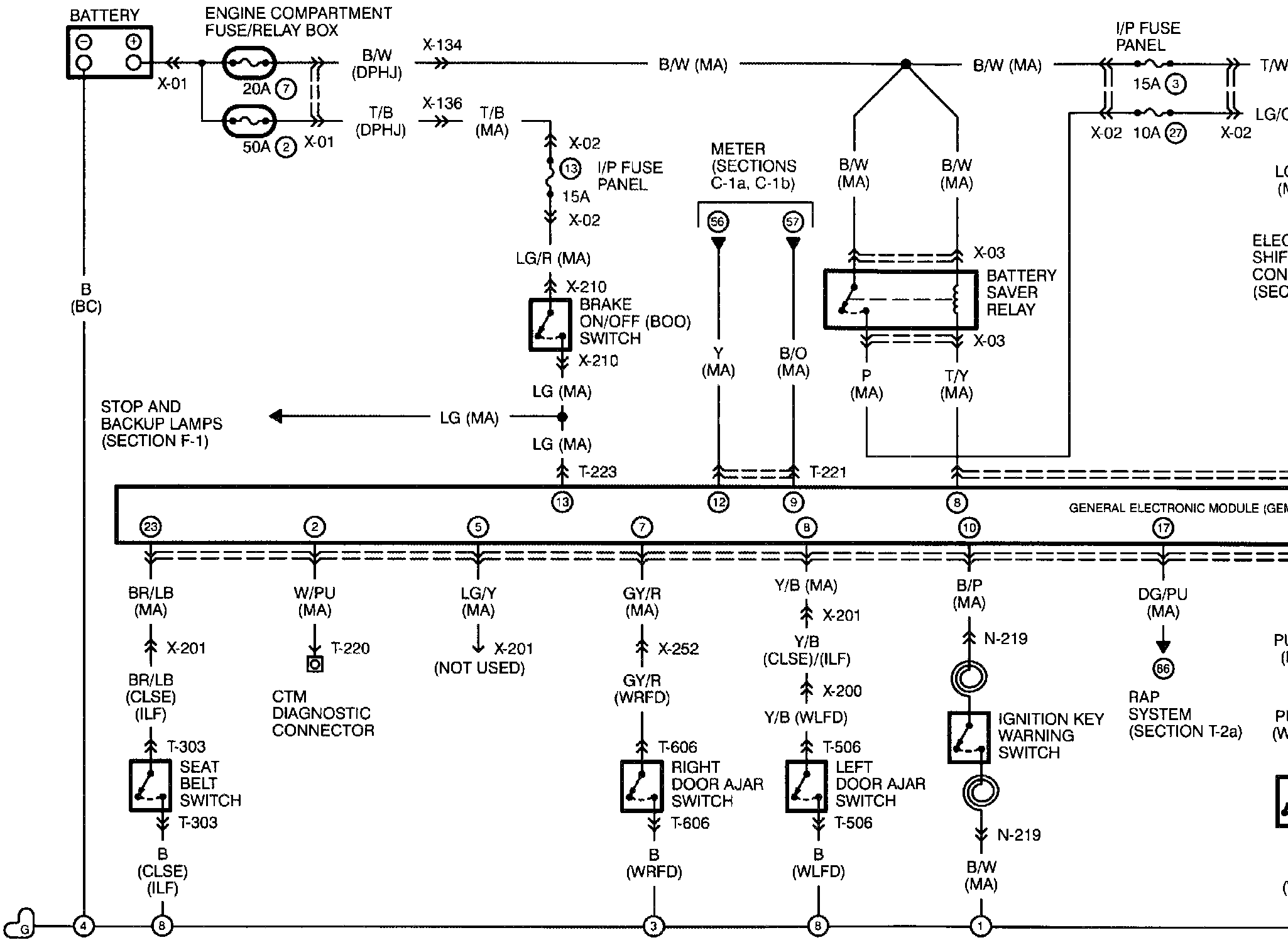

T-1A

"*PGeneric Electronic Module (GEM):
