Home >> Mazda >> 1996 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Connector Views >> B-2

B-2

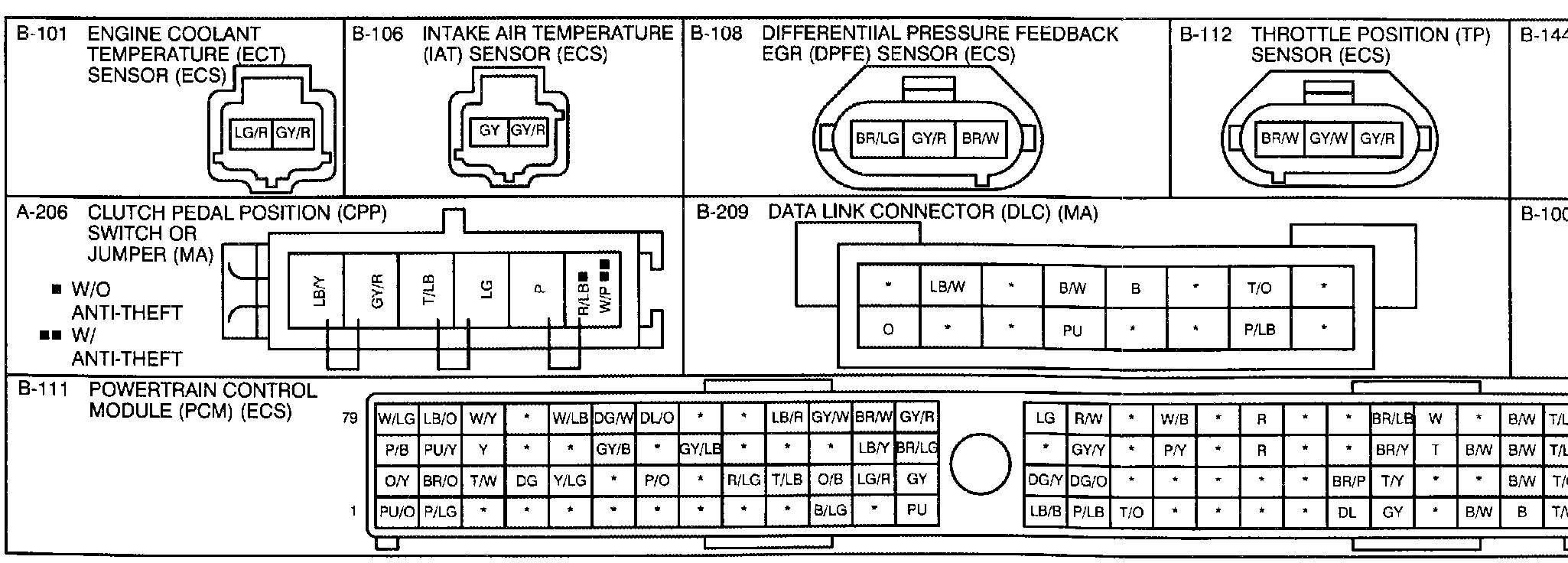

���EEngine Control System-Connectors:
