Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1996
>>
B2300 2WD L4-2.3L VIN A
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures
No Start (No Spark) Trouble Shooting Chart Part 1:

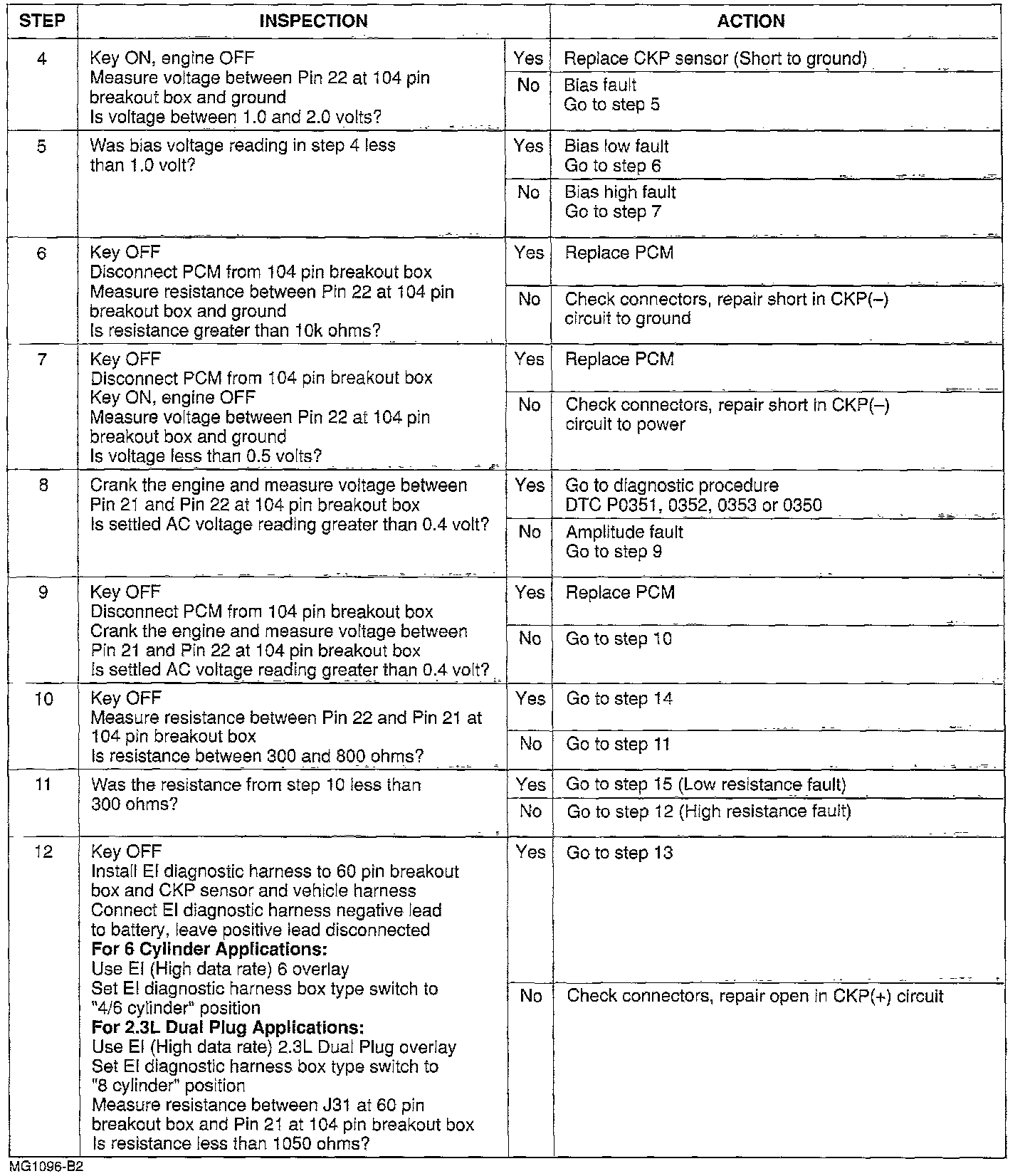

No Spark Part 2:

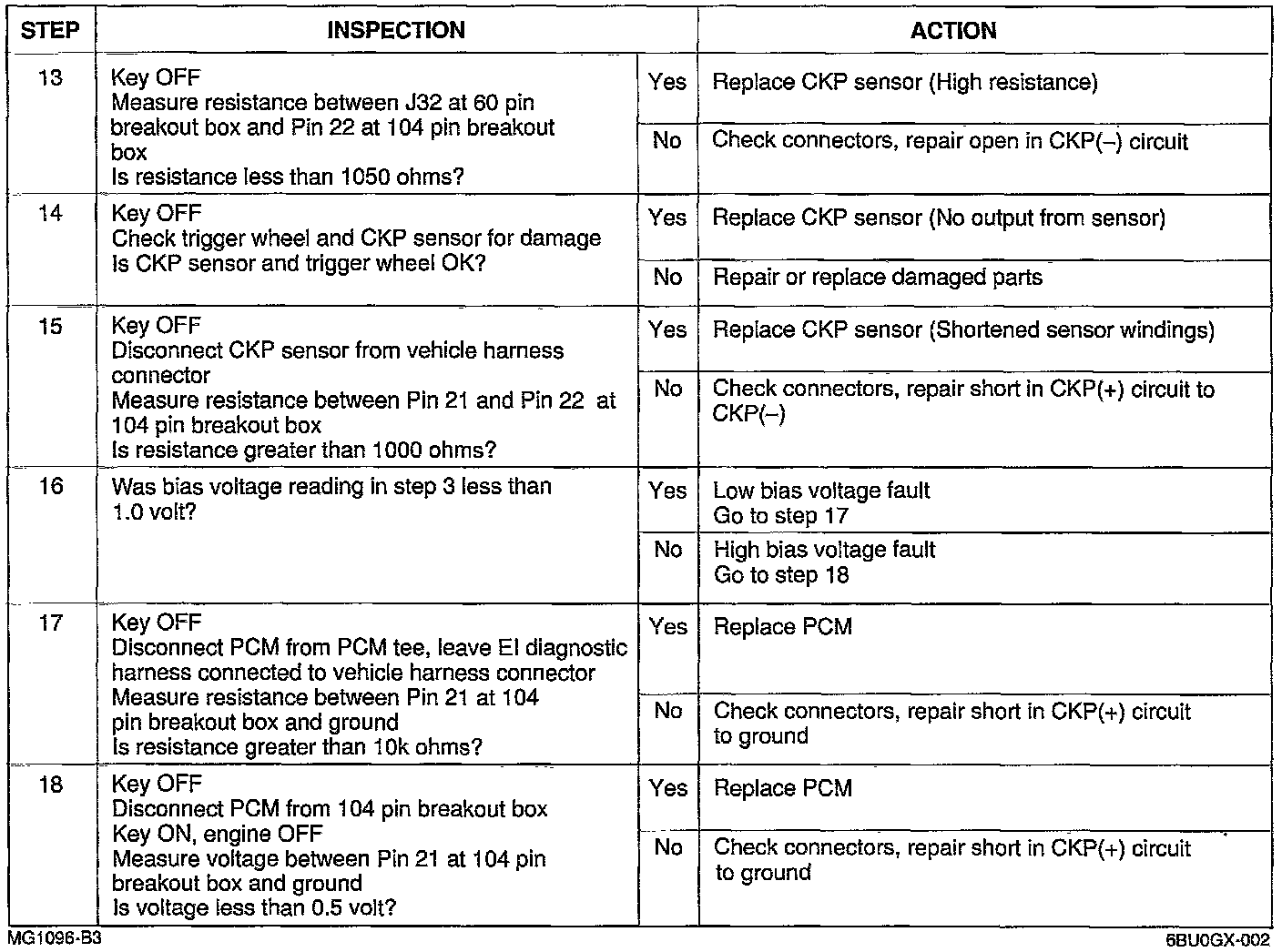

No Spark Part 3:
