Accessing All Continuous Memory DTCs

ACCESSING ALL CONTINUOUS MEMORY DTCs

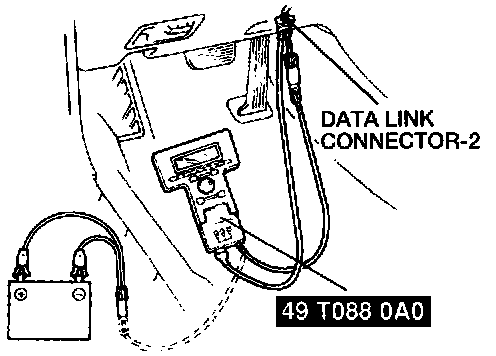

NGS Connection To DLC-2:

1. Perform the necessary vehicle preparation and visual inspection. Hook up Special Service Tools (SST)s New Generation Star (NGS) tester to vehicle.

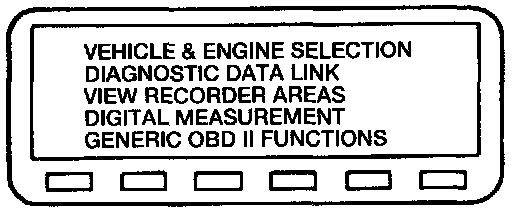

NGS Display:

2. Select vehicle and engine selection menu.
3. Select vehicle year and model.
4. Select diagnostic data link.
5. The system check screen appears. Press CANCEL to bypass this screen. Select PCM.

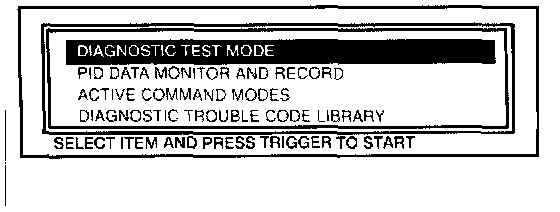

NGS Display-Diagnostic Test Mode:

6. Select diagnostic test mode.
7. Select Retrieve/Clear continuous DTCs.
8. Turn key ON. Press start and trigger.
9. Follow operating instructions from the menu.
