Home >> Mazda >> 1996 >> B2300 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Wiper and Washer Systems >> Locations

Wiper and Washer Systems: Locations

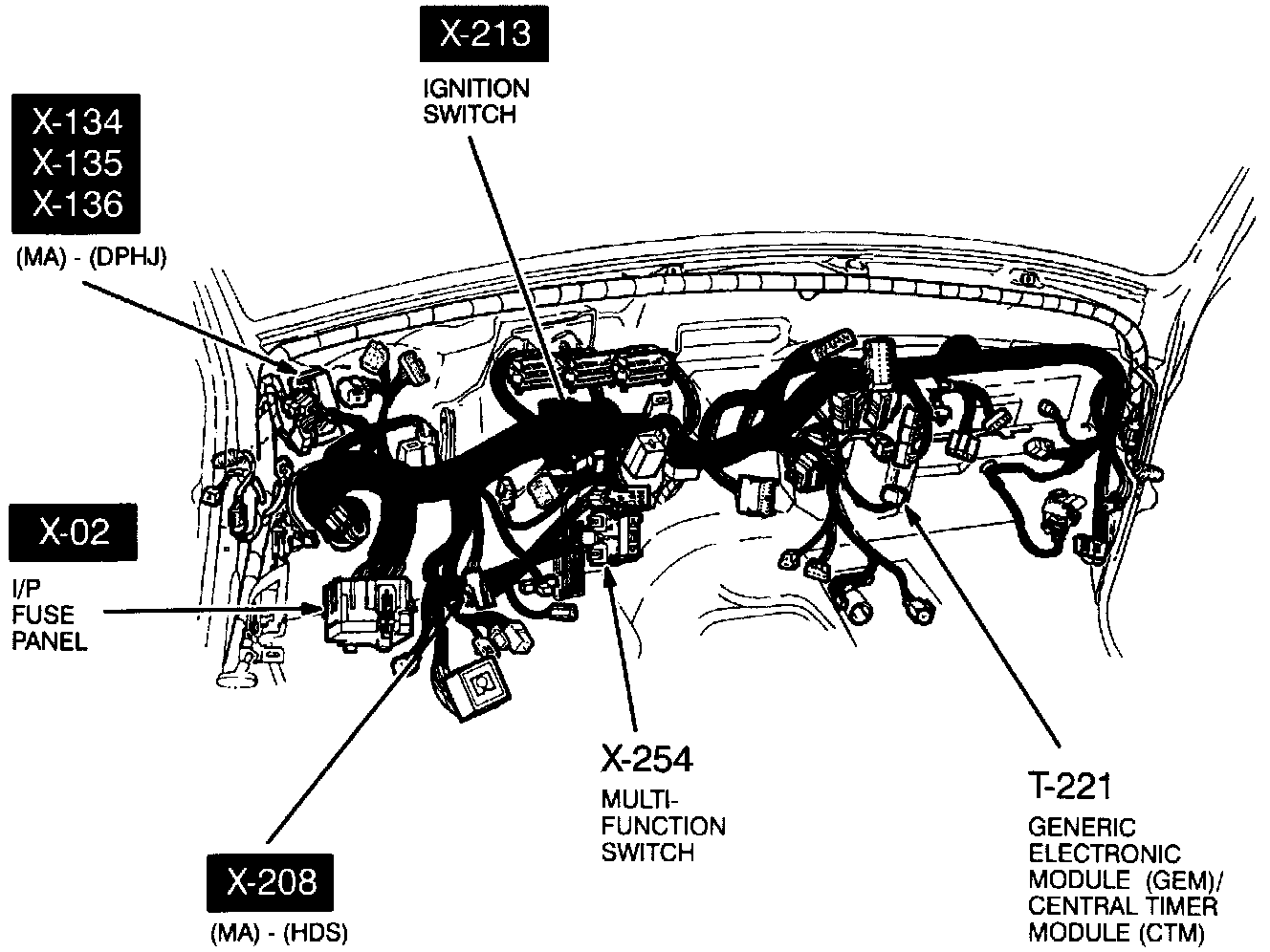

Connector Locations-Instrument Panel:
