Wiper and Washer Systems: Testing and Inspection

Refer to Fig. 36 for troubleshooting procedure.

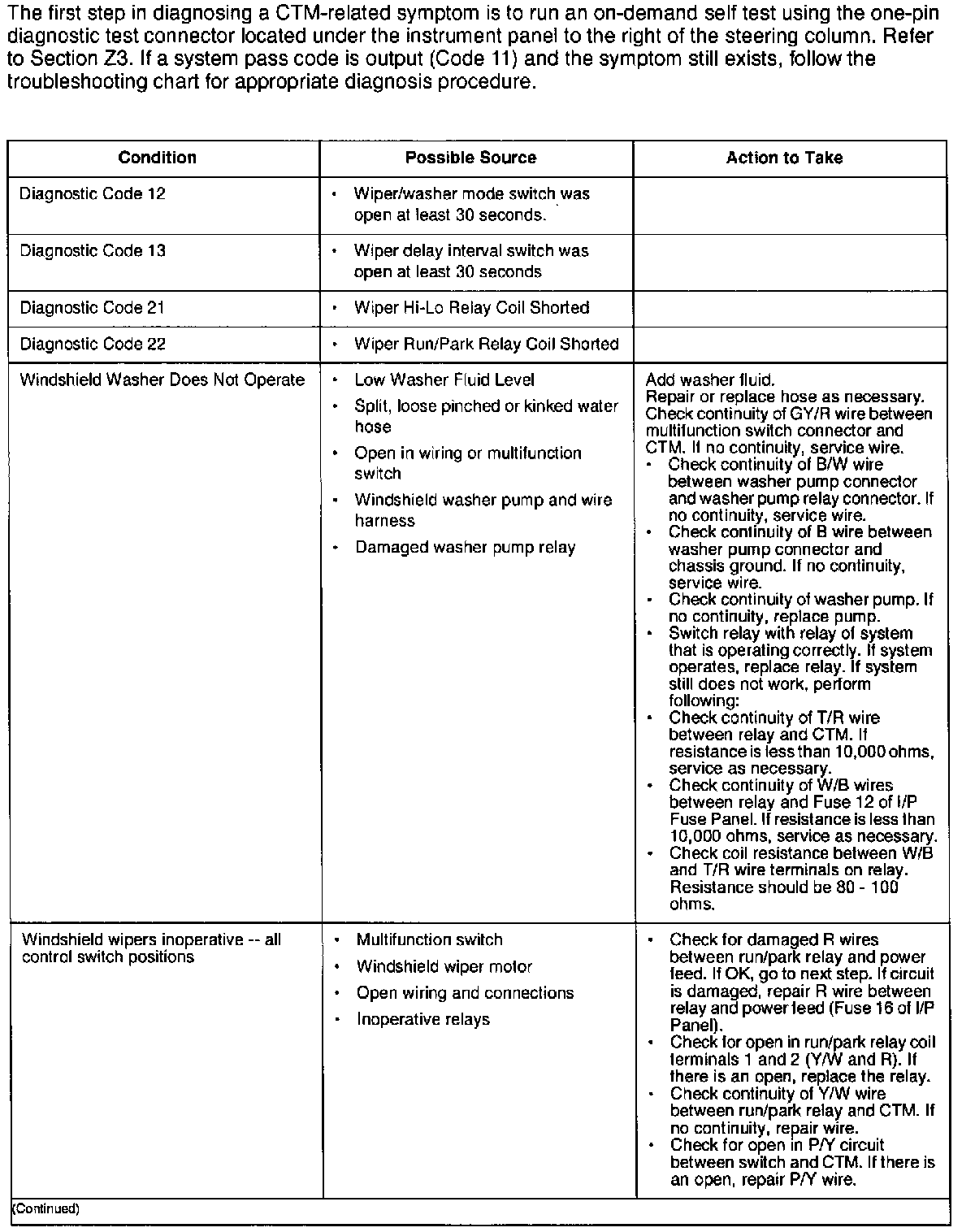

Fig. 36 Troubleshooting Guide (Part 1 Of 3):

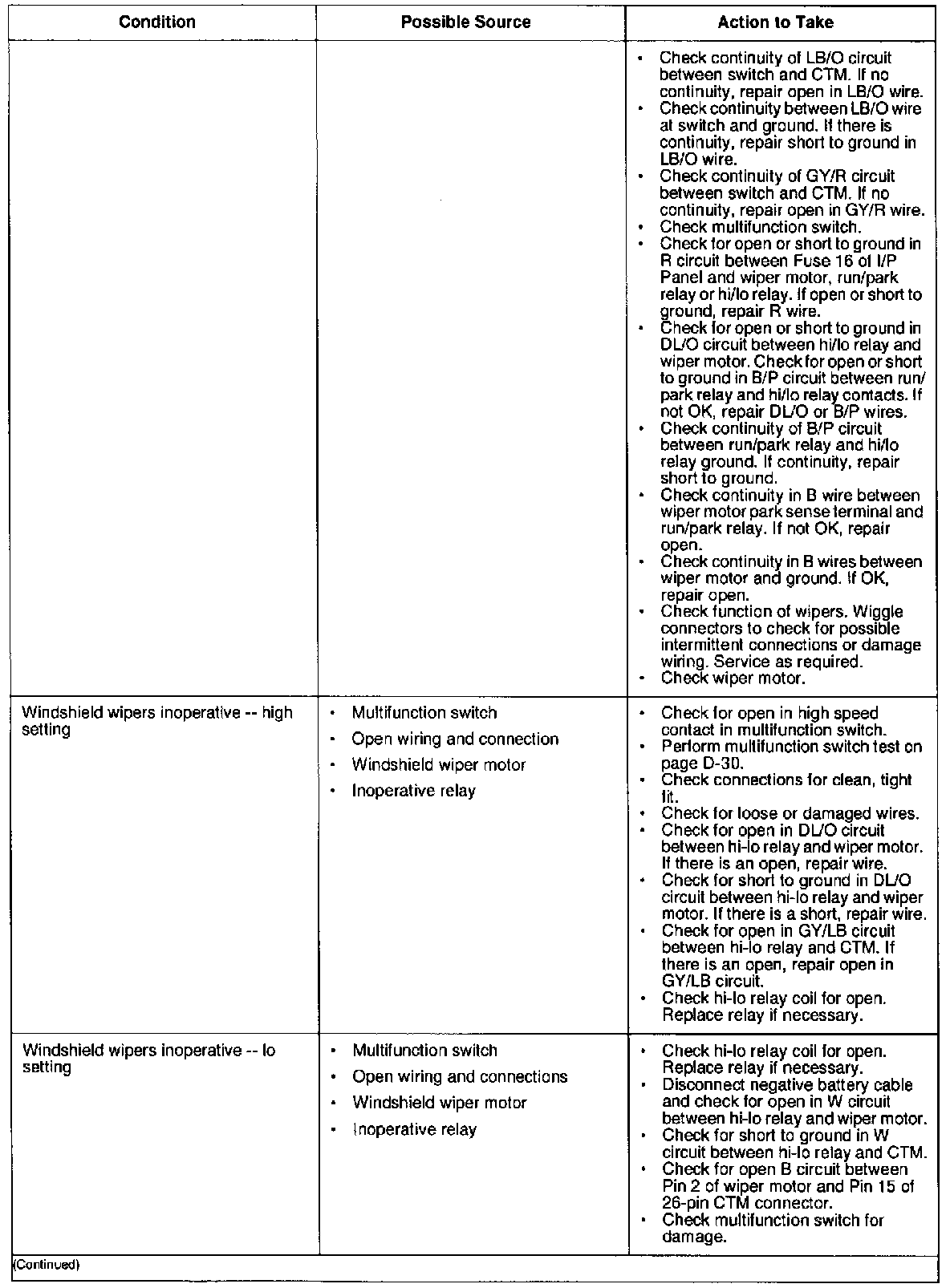

Fig. 36 Troubleshooting Guide (Part 2 Of 3):

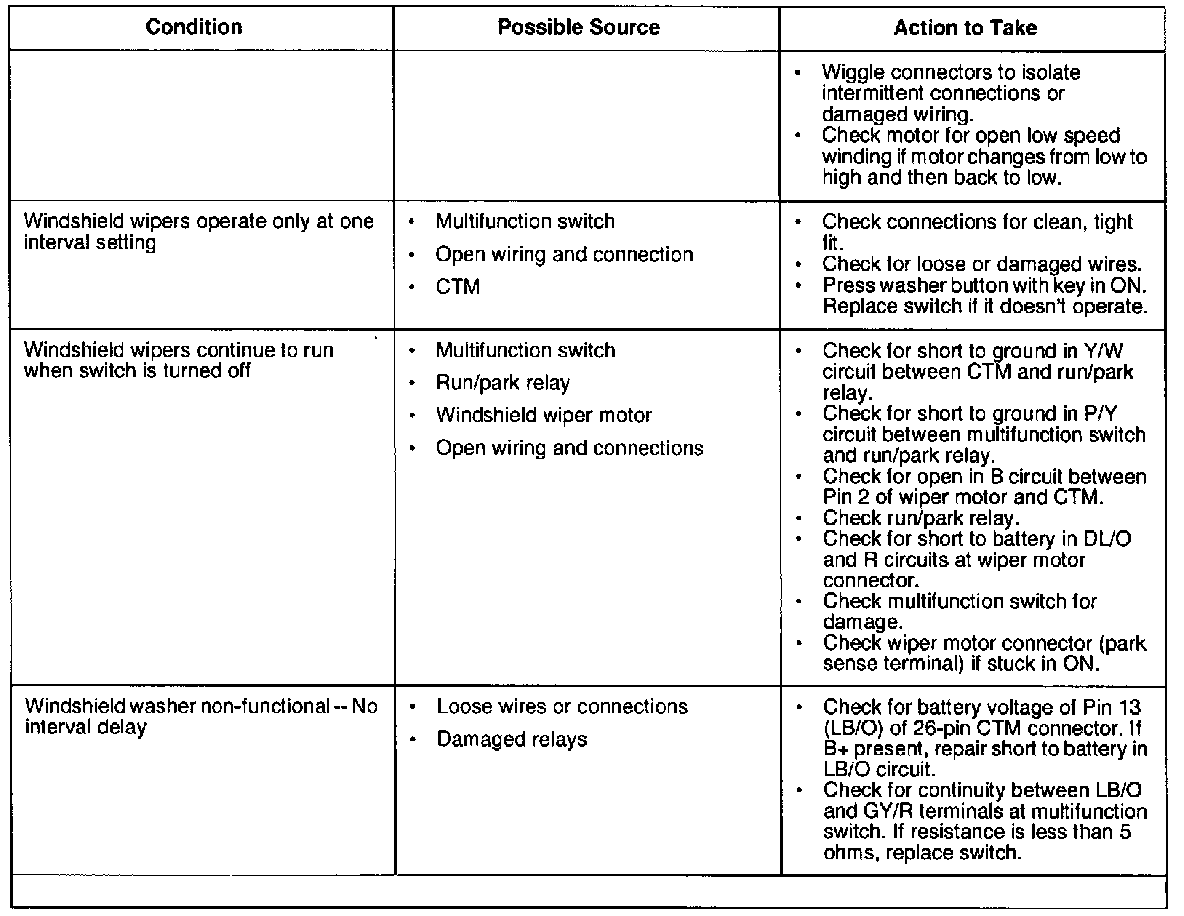

Fig. 36 Troubleshooting Guide (Part 3 Of 3):
