Home
>>
Mazda
>>
1996
>>
B2300 4WD L4-2.3L VIN A
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>

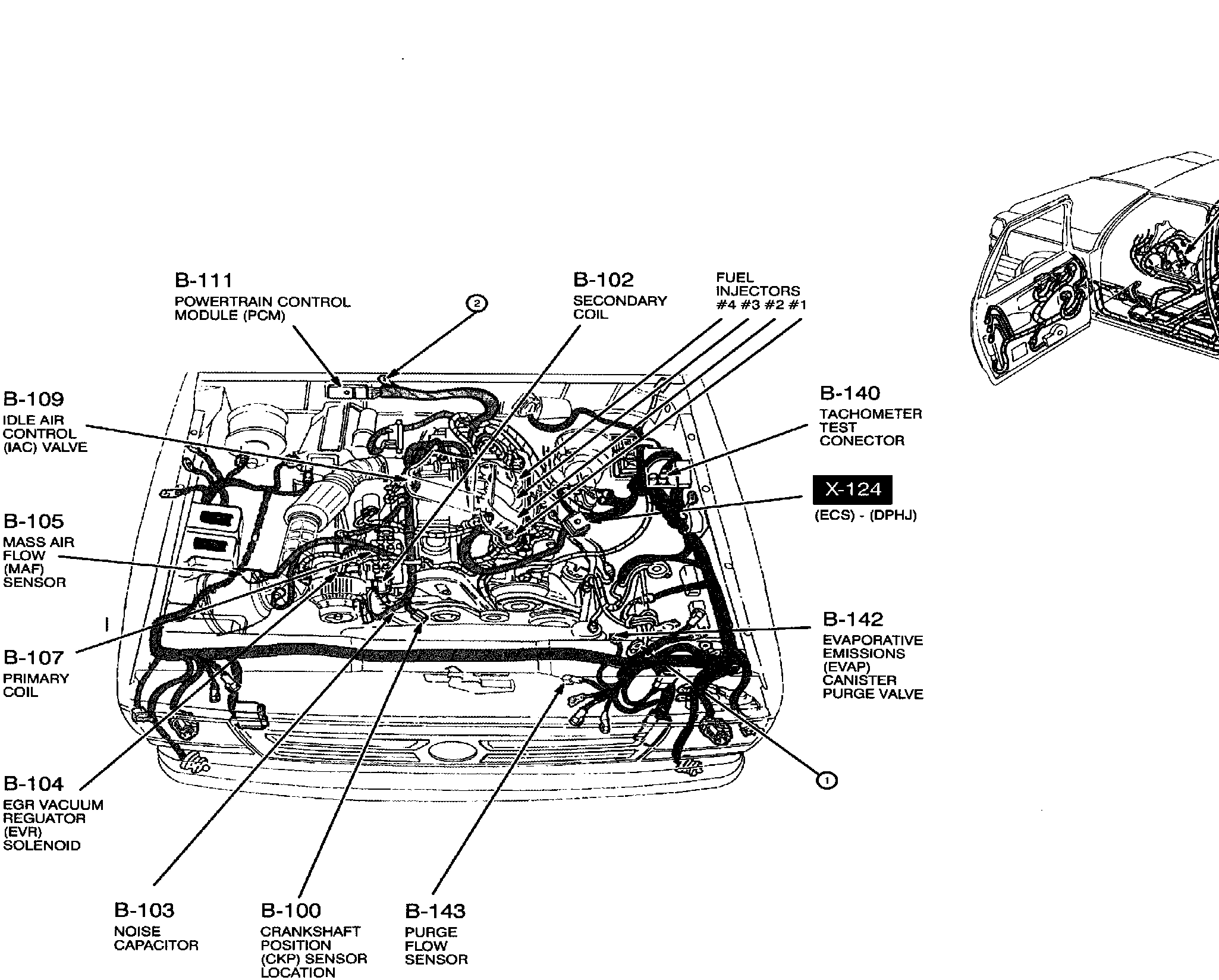

Connector Locations
>>
B-1A
B-1A
?m� Connector Locations:
