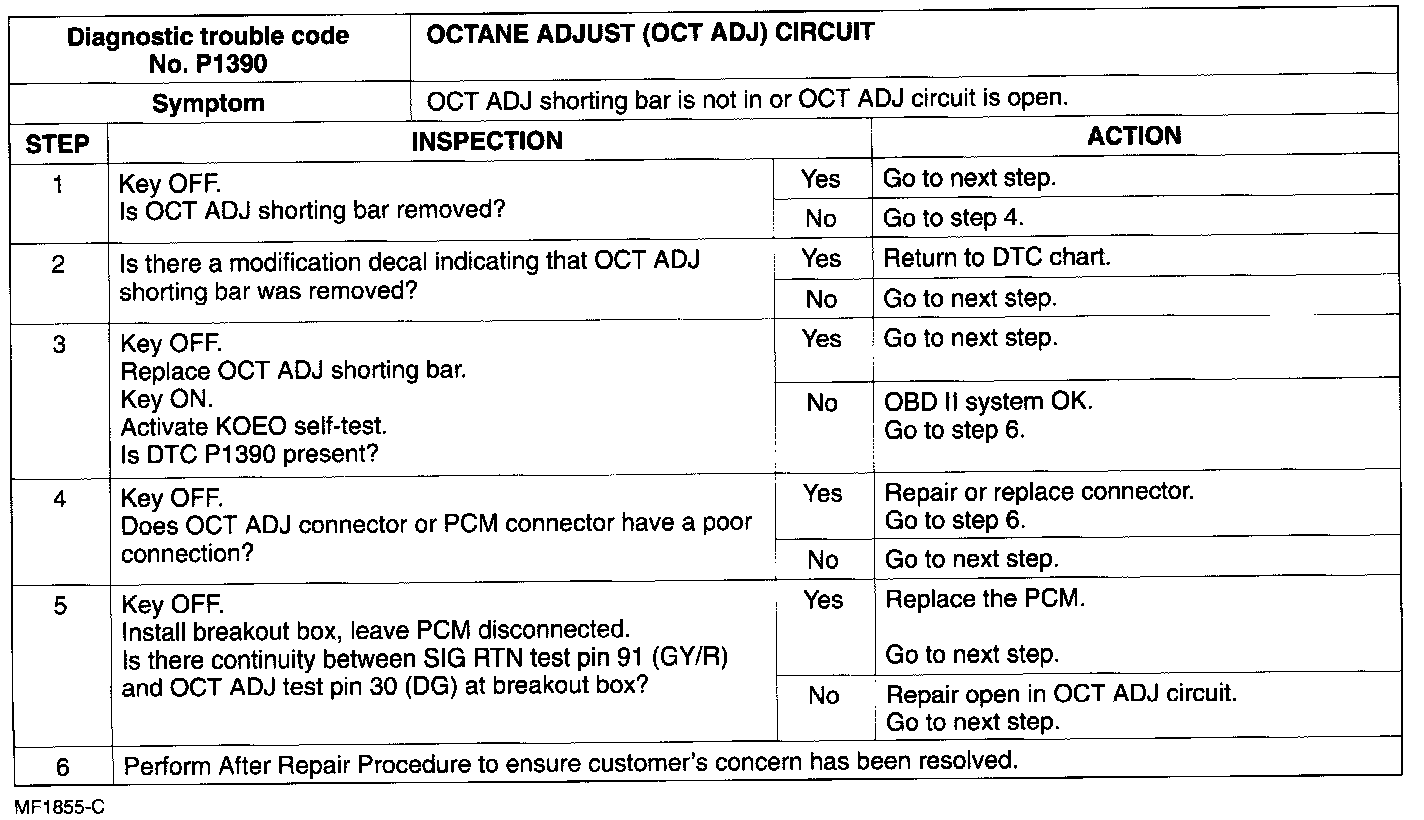

Calibration Resistor / Connector: Testing and Inspection

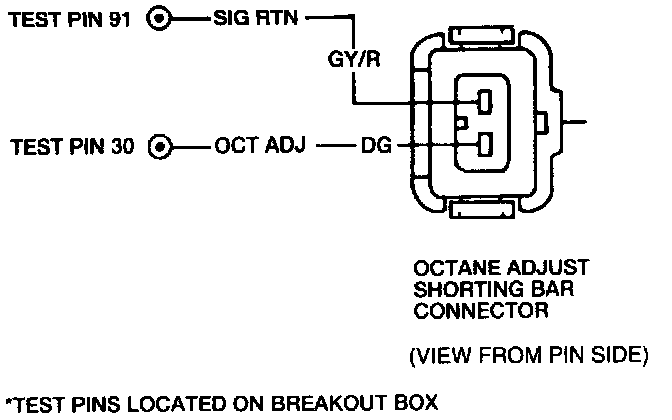

Octain Adjust Shorting Bar Connector:

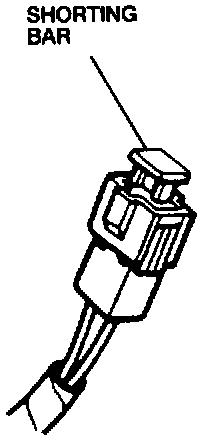

Shorting Bar:
