Home >> Mazda >> 1996 >> B3000 2WD V6-3.0L OHV >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Locations >> M/T

M/T

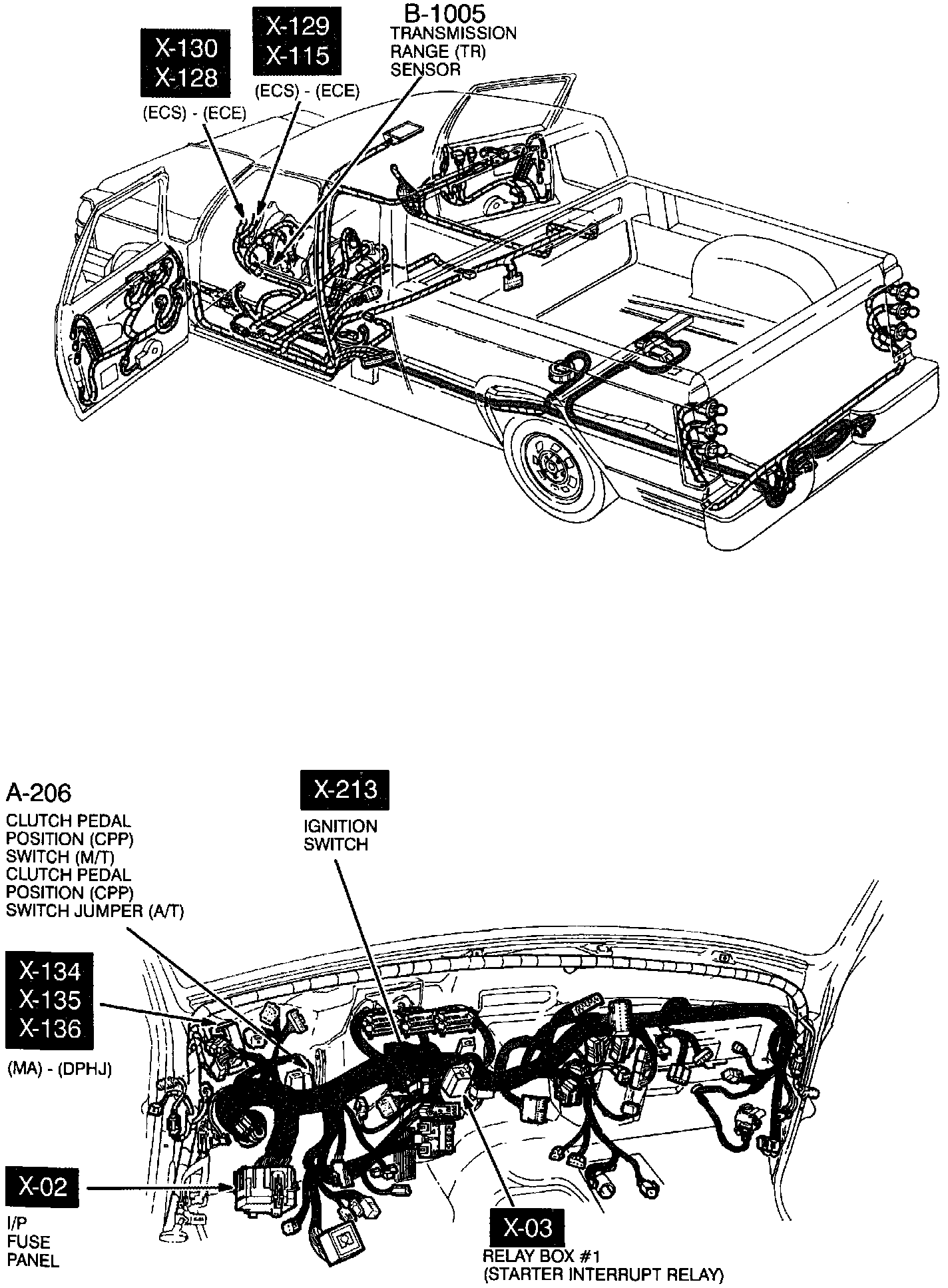

Connector Locations-Instrument Panel And Body:
