Cruise Control: Locations

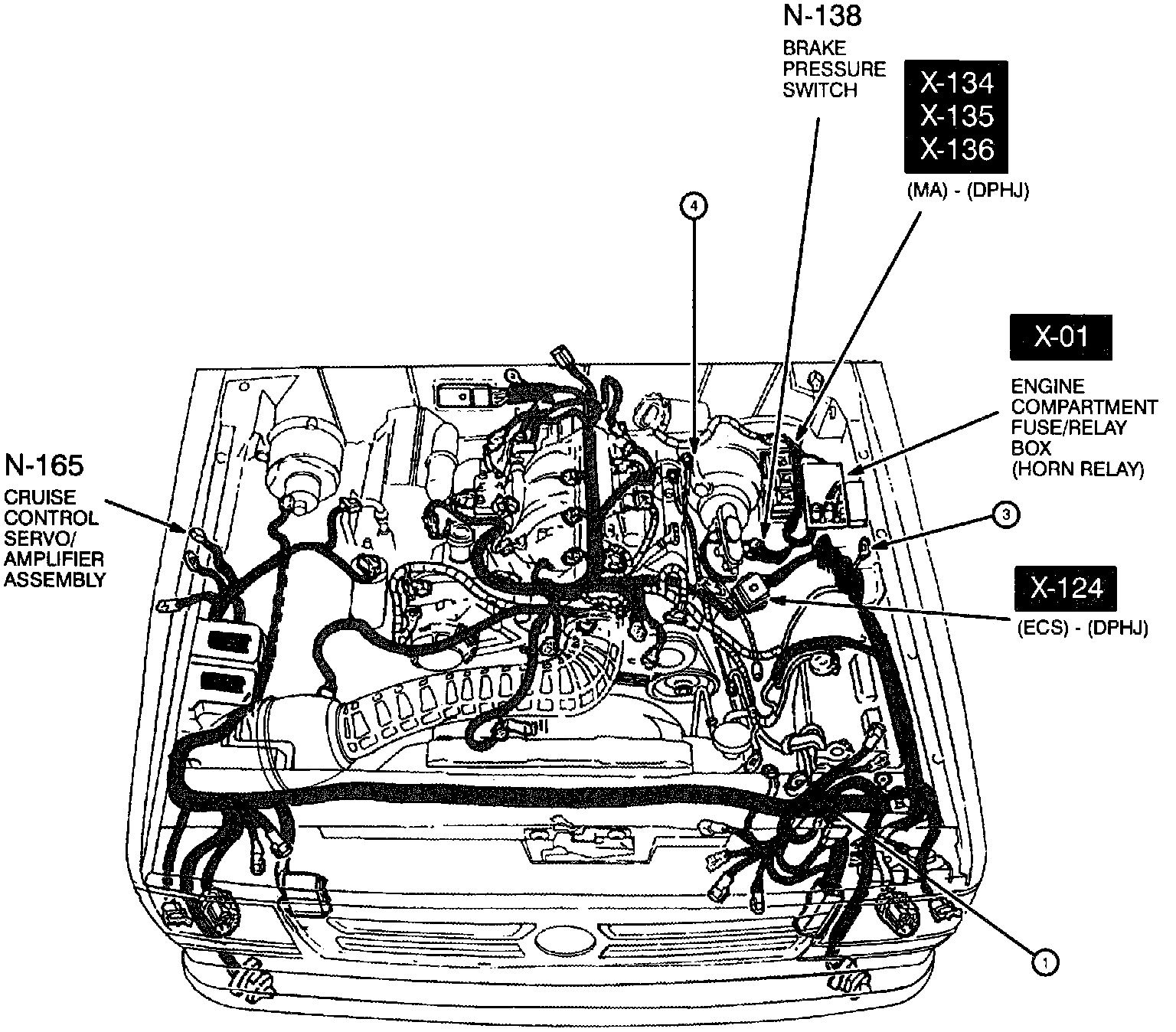

Connector Locations-Engine Compartment:



�&°qConnector Locations-Instrument Panel And Body:
