Home >> Mazda >> 1996 >> B4000 2WD V6-4.0L OHV >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations >> Connector Locations >> B-8

B-8

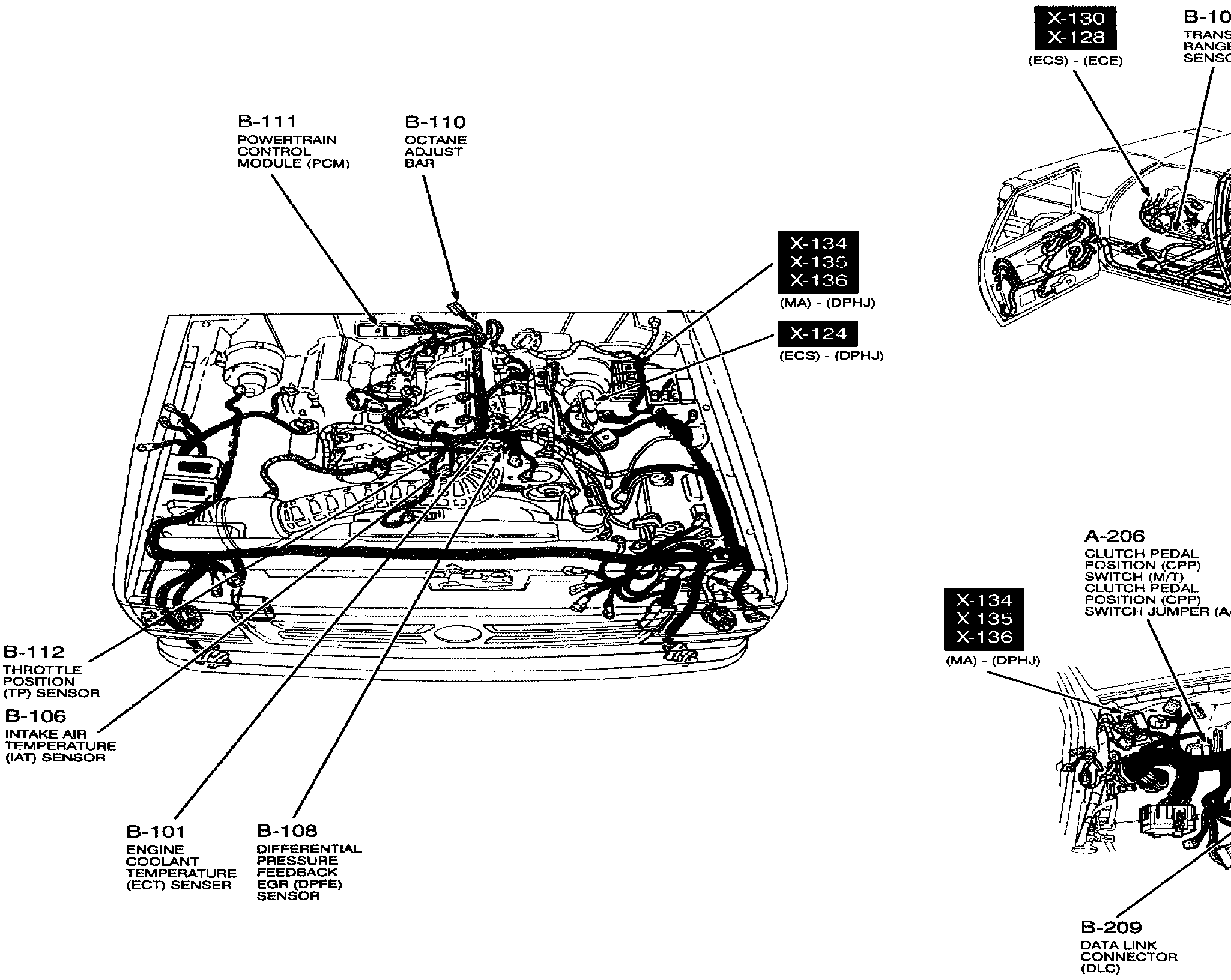

a�Connector Locations:
