Diagnostic Trouble Code Interpretation

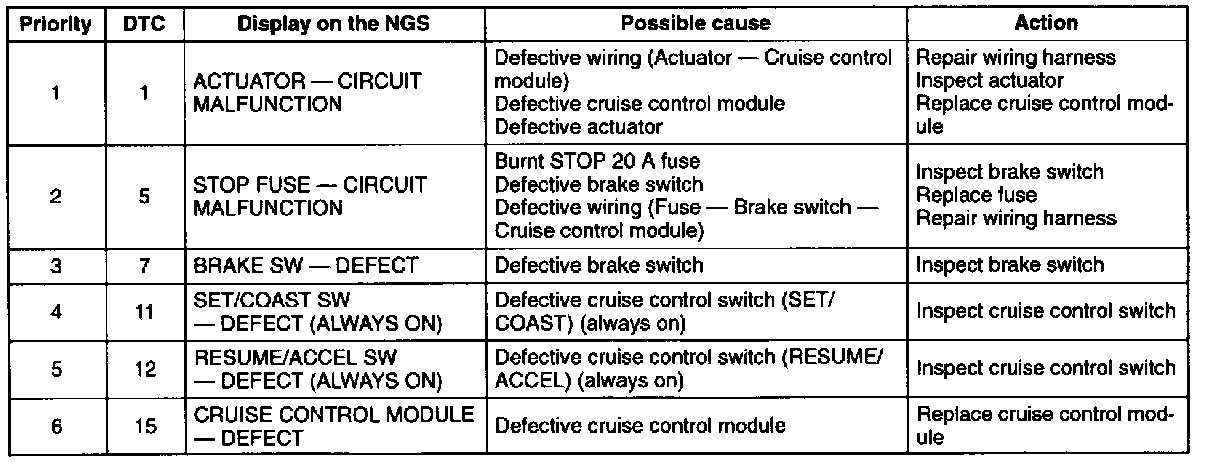

Refer to Fig. 11 for diagnostic trouble code interpretations, possible causes and corrective action. Refer to Fig. 10 for normal operation indications and causes and corrective action for any deviation.Fig. 10 Condition Detection Mode Diagnostic Trouble Code Interpretation:

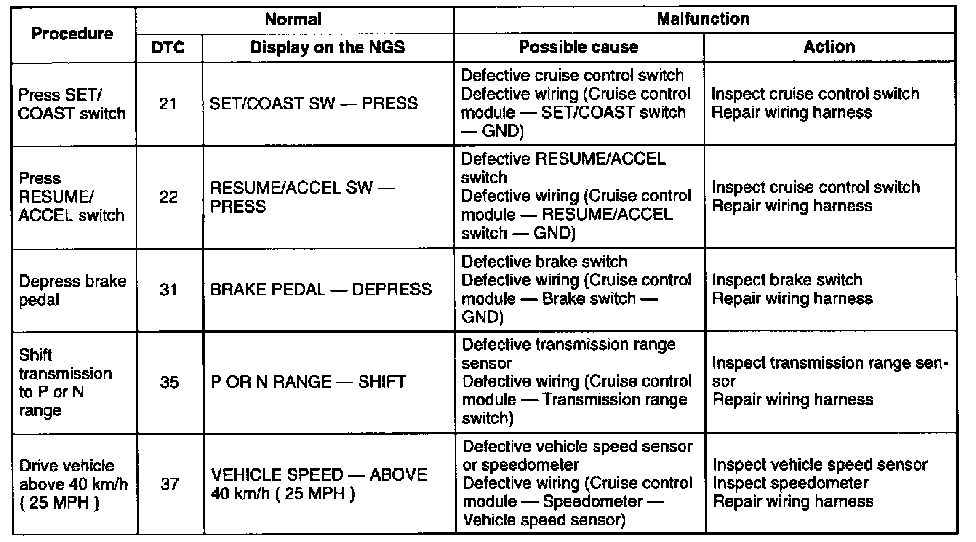

Fig. 11 Normal Operation Indications, Deviation Causes & Corrections:
