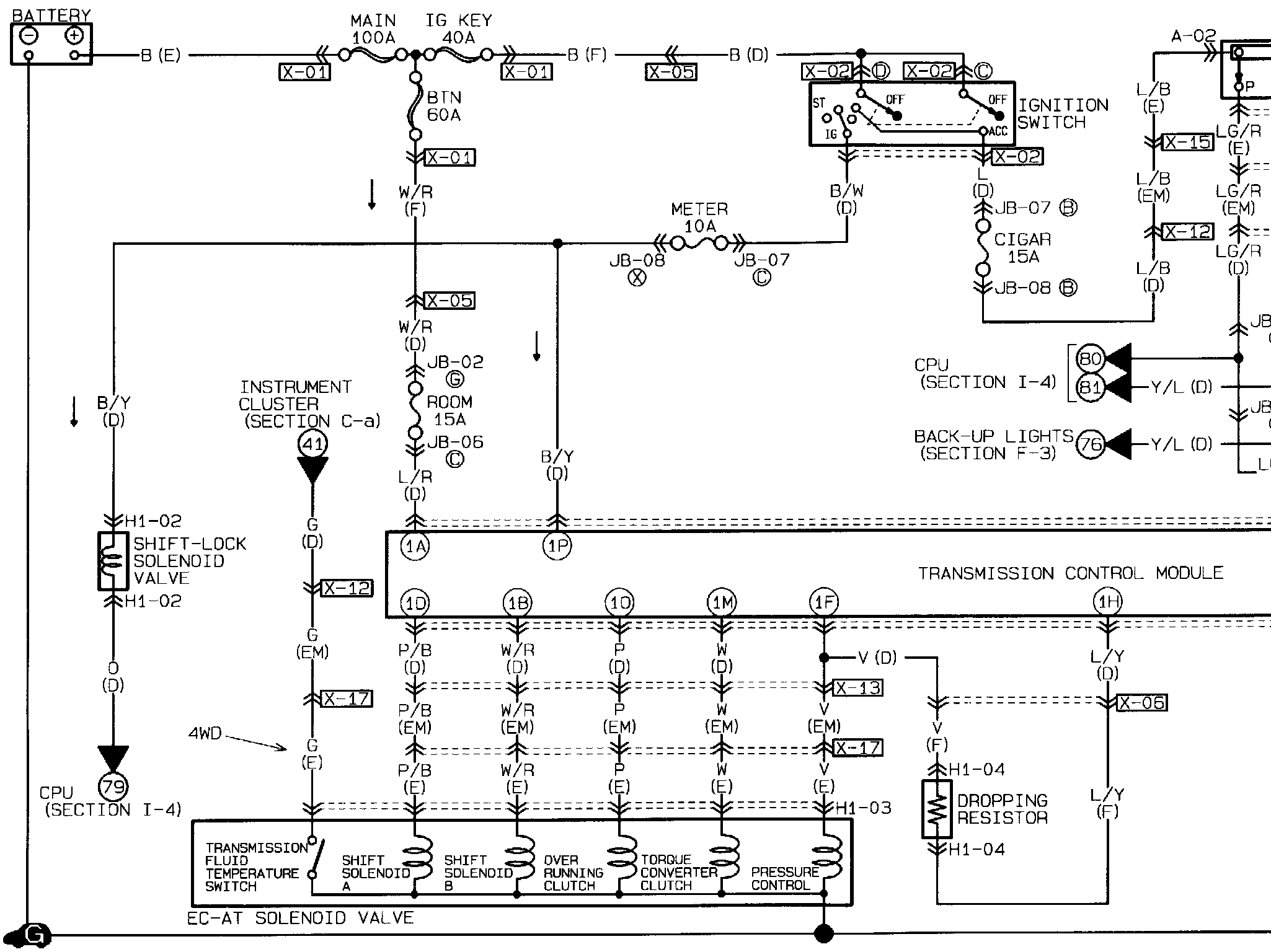

EC-AT Control System (1/2), Shift-Lock System
EC-AT Control System (1/2), Shift-Lock System
a AHEC-AT Control System (1/2), Shift-Lock System:
