Home >> Mazda >> 1996 >> MPV 2WD V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Interior Lighting Module

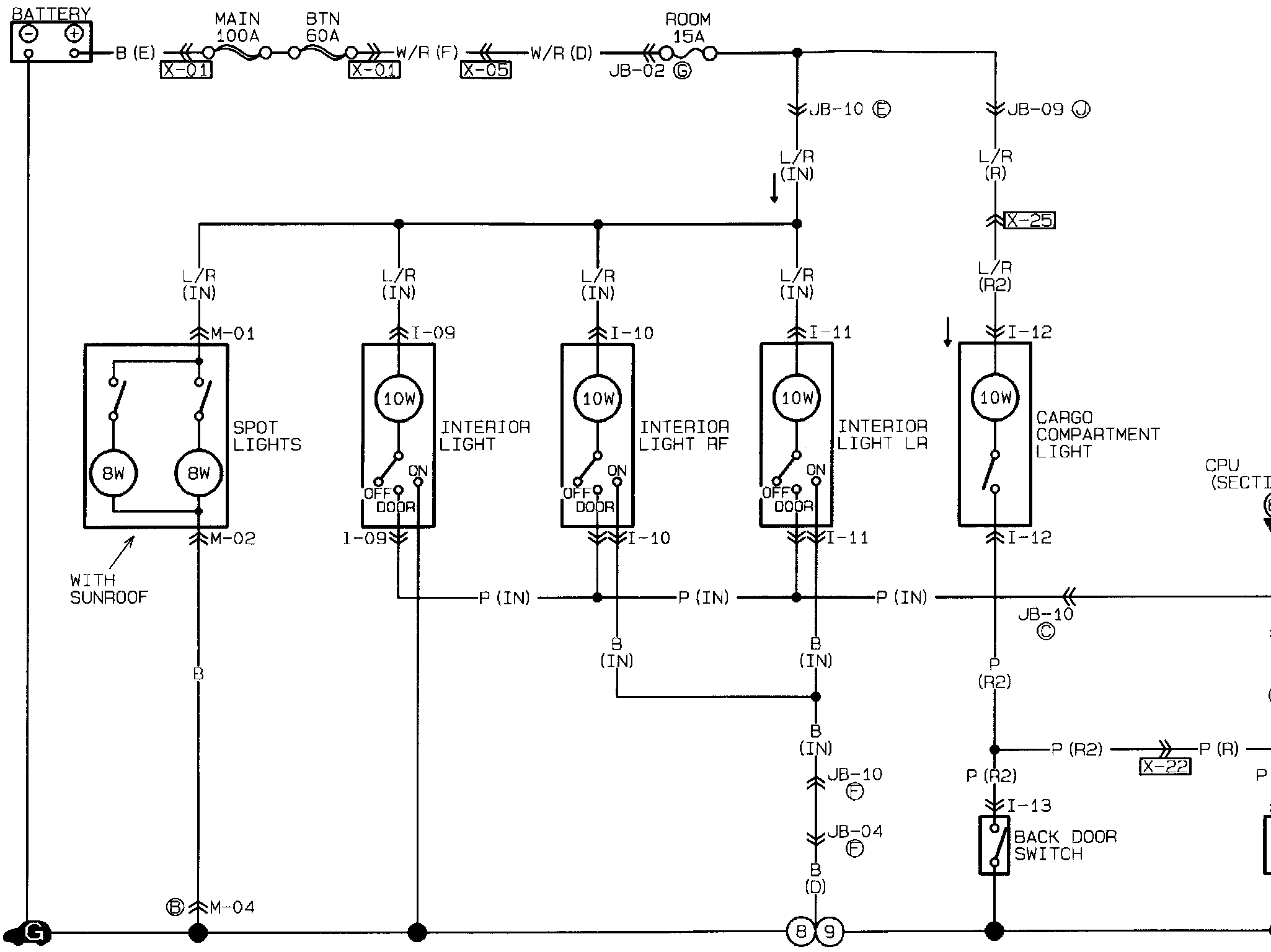

Interior Lighting Module

ٱ�Interior And Spot Lights, Cargo Compartment Light:
