With SST-New Generation Star Tester

FUEL TANK PRESSURE SENSOR
Inspection Using SSTs (NGS)




1. Connect the SSTs (NGS) to the data link connector 2 located under the driver side dashboard.

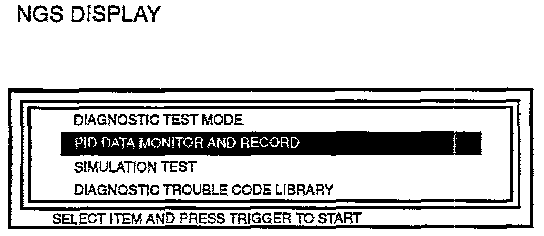

2. Select the "PID/DATA MONITOR AND RECORD" function on the NGS display.
3. Apply vacuum to the fuel tank pressure sensor by using a vacuum pump.

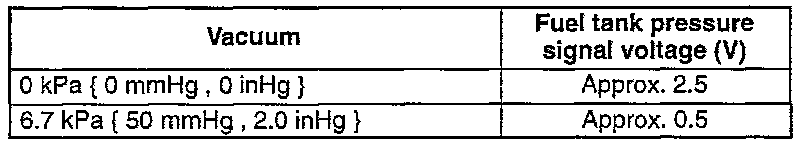

4. Select "FTP V" on the NGS display. The NGS measures and shows the voltage.




5. If not as specified, replace the fuel tank pressure sensor.
