Air Valve Inspection

Inspection:
1. Remove the bypass air control (BAC) valve.
2. Circulate water in the BAC valve coolant passage to cool the air valve.

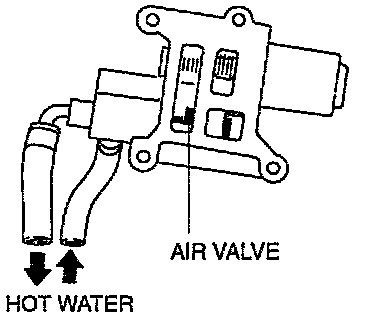

3. Circulate hot water in the BAC valve coolant passage and verify that the air valve operates.
4. If not, replace the BAC valve.
