Home >> Mazda >> 1996 >> MPV 2WD V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Connector Locations >> Engine Control System (4/4)

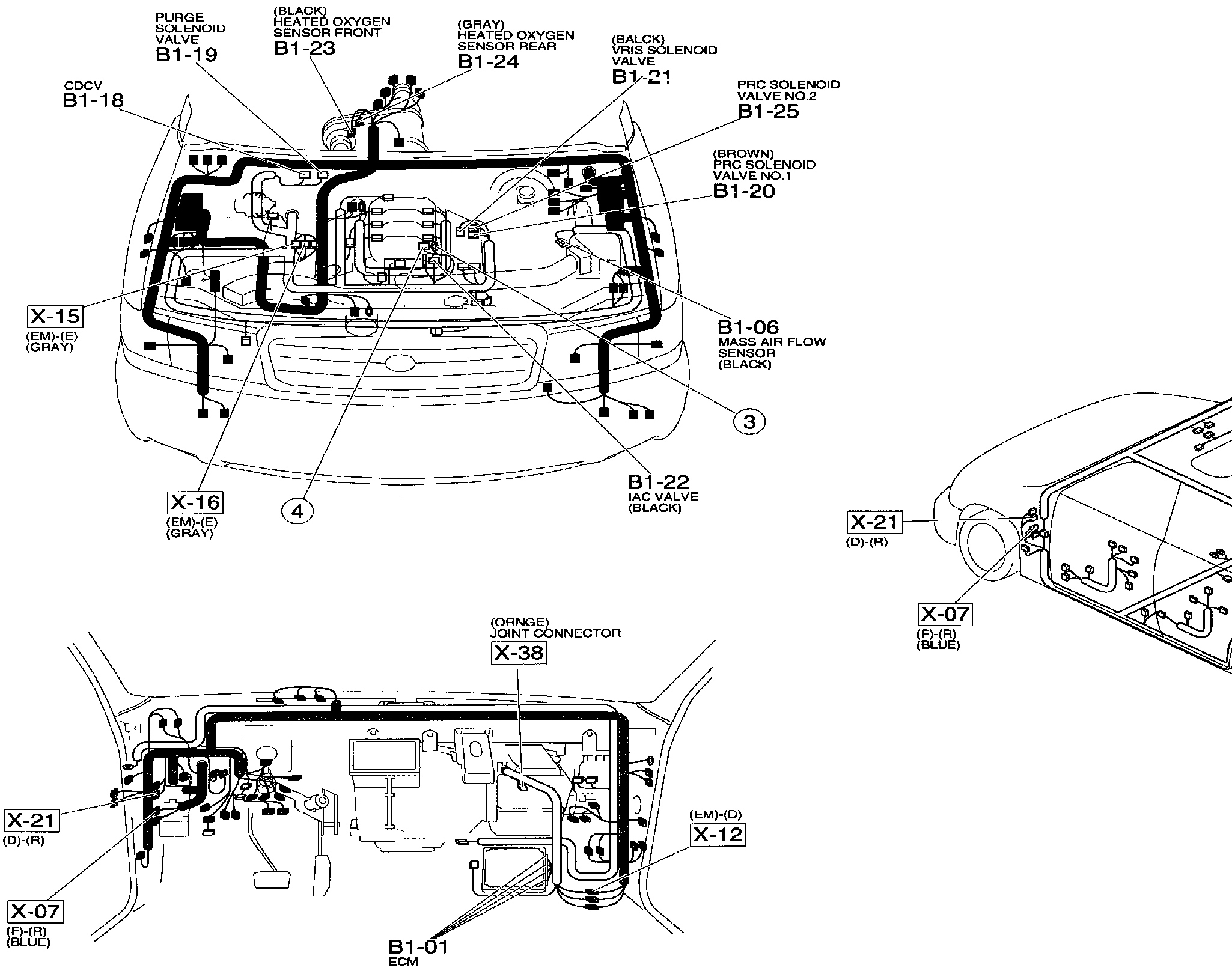

Engine Control System (4/4)

�°�=Connector Locations:
